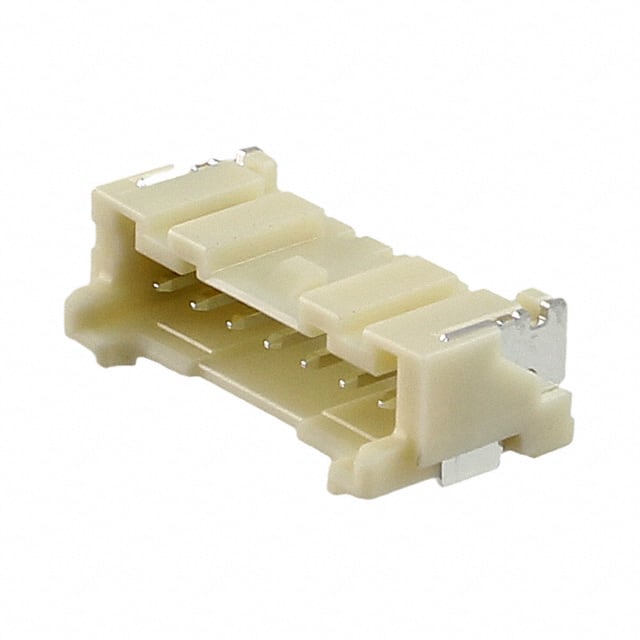

The SM07B-PASS-TBT(LF)(SN) is a 7-position, single-row, shrouded header from JST's PA series. It features male square pins with a 2.00mm pitch and is designed for board-to-cable/wire connections. The connector is surface mounted with a right-angle orientation and uses solder termination.
Key electrical ratings include a current rating of 3A and a voltage rating of 250V. The operating temperature range is -25°C to 85°C. The housing is made of polyamide (nylon) with a UL94 V-0 flammability rating and natural color. The contacts are copper alloy with a tin finish.
The header includes a locking ramp fastening type for secure mating and features pick-and-place and solder retention for automated assembly. The insulation height is 5.69mm.
The pitch is 2.00mm.
It has 7 positions in a single row, all loaded.
The current rating is 3A and the voltage rating is 250V.
Surface mount, right angle.
-25°C to 85°C.
Yes, it is a shrouded 4-wall header.
Tin.
