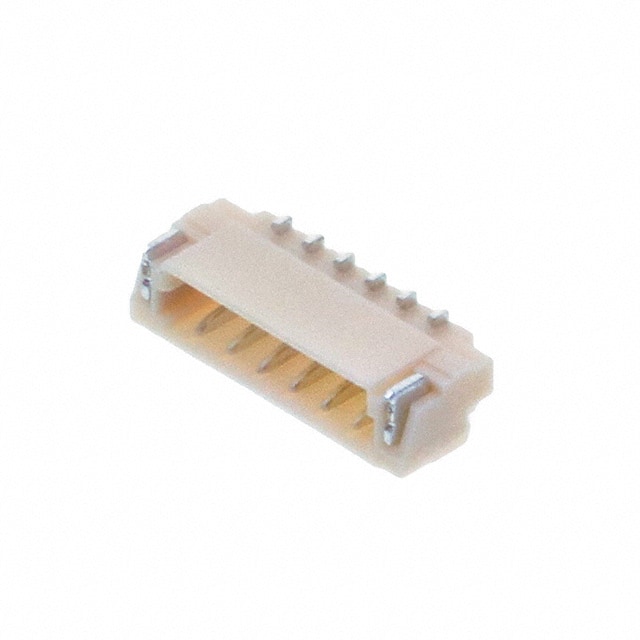

The SM06B-SURS-TF(LF)(SN) is a 6 position, single row, 0.8mm pitch surface mount right angle shrouded header from JST Manufacturing's SUR series. This board-to-cable/wire connector features a shrouded 4-wall design with push-pull fastening and solder retention for reliable PCB mounting.
Rated for 30V DC and 0.5A (AWG #32) or 0.2A (AWG #36), it operates over a temperature range of -25°C to 85°C. The header uses tin plated copper alloy contacts with a rectangular contact shape and is housed in a natural polyamide (PA) nylon insulator with UL94 V-0 flammability rating.
Designed for insulation displacement termination, this connector is suitable for fine wire applications with conductor sizes AWG #32 and #36. The right angle orientation allows for low-profile board-to-wire connections in space-constrained designs.
6 positions in a single row.
0.80mm.
0.5A for AWG #32 wire and 0.2A for AWG #36 wire.
30V DC.
Surface mount, right angle.
-25°C to 85°C.
Yes, RoHS3 compliant per the datasheet.
