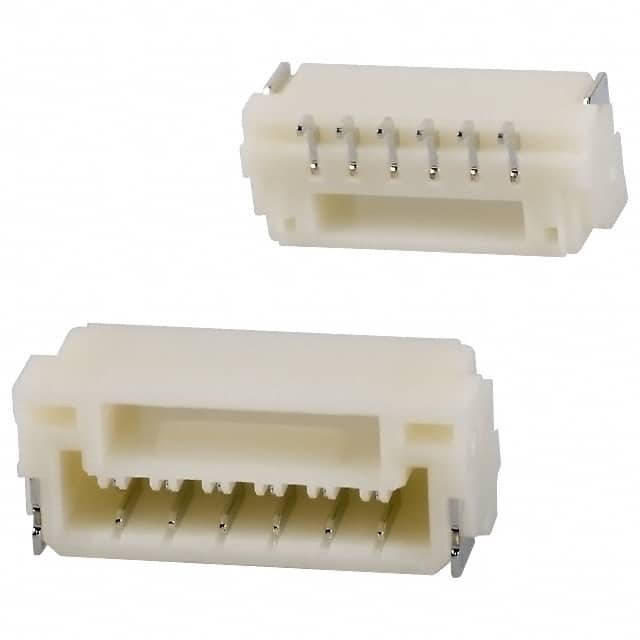

The SM06B-GHS-TB(LF)(SN) is a 6-position shrouded header connector from the GH series by JST Manufacturing. It features a 1.25mm pitch and a surface mount right angle mounting style, ideal for board-to-cable/wire applications. The header includes a locking ramp fastening mechanism for secure mating and is fully shrouded with four walls to prevent misalignment and protect contacts.
Electrical ratings include a current rating of 1A and a voltage rating of 50V. The operating temperature range is -25°C to 85°C. Contacts are made of phosphor bronze with a tin finish, housed in a natural polyamide (PA9T) insulator with a UL94 V-0 flammability rating. The component includes solder retention features for reliable assembly.
This connector is suitable for high-density PCB designs where space is limited. The right angle orientation allows for low-profile connections, and the locking ramp provides audible feedback during mating. All 6 positions are loaded, ensuring full connectivity in your design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.41 | $0.41 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.31 | $0.31 |
| 1,000+ | $0.30 | $0.30 |
| 2,500+ | $0.23 | $0.23 |
| 5,000+ | $0.22 | $0.22 |
| 10,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
1.25 mm.
1 A.
50 V.
Surface Mount, Right Angle.
-25°C to 85°C.
Phosphor Bronze with Tin finish.
