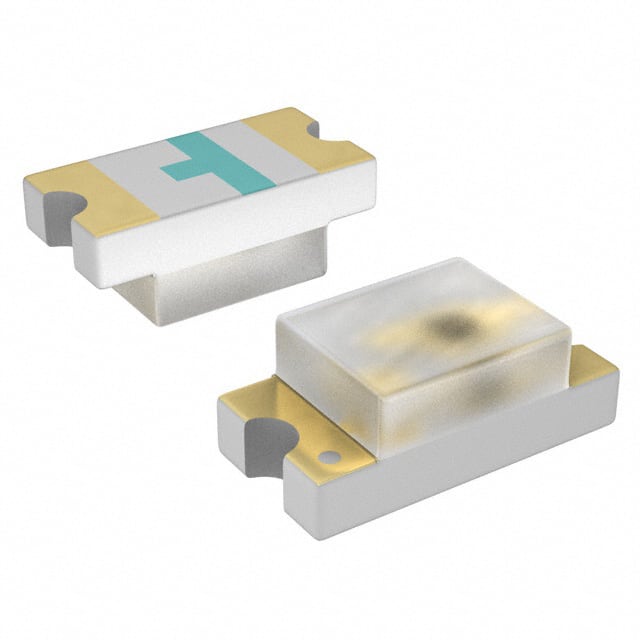

SM0603URC The Bivar Inc. SM0603URC is a red LED designed for surface mount applications. It features a 0603 package and a clear lens.
Mfr Part #:

SM0603URC

Available from 2 distributors
Mfr Name: Bivar Inc.
Bivar Inc.
The Bivar Inc. SM0603URC is a red LED designed for surface mount applications. It features a 0603 package and a clear lens.
✓ Total Stock: 313 pcs
$ Price Range: $0.06

SM0603URC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
216 pcs
On Request
216 pcs On Request 1 On Request On Request 12+ On Request On Request
Akira Global ✓
Non-Authorised Inventory information
97 pcs
On Request
97 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SM0603URC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SM0603URC Description

Short technical summary and product information.

This Bivar Inc. SM0603URC is a discrete red LED suitable for various indication applications. It is housed in a compact 0603 (1608 Metric) surface mount package, measuring 1.60mm L x 0.80mm W with a maximum height of 0.60mm.



The LED operates with a nominal forward voltage of 2.1V and a forward current of 20mA, providing a luminous intensity of 55mcd. Its wavelength is 655nm, and it offers a wide viewing angle of 130°. The lens is clear and colorless, with dimensions of 1.00mm x 0.80mm.



Designed for standard configuration, this LED is RoHS3 compliant and has an MSL rating of 1. Its clear, colorless lens and flat top style ensure optimal light output and visibility. The SM0603URC is a reliable choice for applications requiring a small, bright red indicator.



Key specifications include its red color, 2.1V forward voltage, 20mA current, 55mcd luminous intensity, and 655nm wavelength. The 0603 package and surface mount type make it ideal for automated assembly processes.

SM0603URC Quick Information

Product Type: LED
Canonical Name: Bivar Inc. SM0603URC Red LED
Subcategory: Discrete

SM0603URC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SM0603URC Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SM0603URC Features

  • Red LED in 0603 package.
  • Surface mount design for automated assembly.
  • 2.1V forward voltage, 20mA current.
  • 55mcd luminous intensity at 655nm.
  • Wide 130° viewing angle.

SM0603URC Applications

  • Ideal for status indication.
  • Suitable for compact electronic devices.
  • Used in consumer electronics.
  • Applicable for panel lighting.

SM0603URC FAQs

7 frequently asked questions generated from this part’s specifications.
What color is the Bivar Inc. SM0603URC LED?

The LED is red.

What is the forward voltage of the SM0603URC LED?

The nominal forward voltage is 2.1V.

What is the forward current for this LED?

The forward current is 20mA.

What is the luminous intensity of the Bivar SM0603URC?

The luminous intensity is 55mcd.

What is the package type for the SM0603URC?

It is a 0603 (1608 Metric) surface mount package.

What is the viewing angle of this LED?

The viewing angle is 130°.

Is the Bivar SM0603URC RoHS compliant?

Yes, it is RoHS3 compliant.
