| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
248 pcs
|
248 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

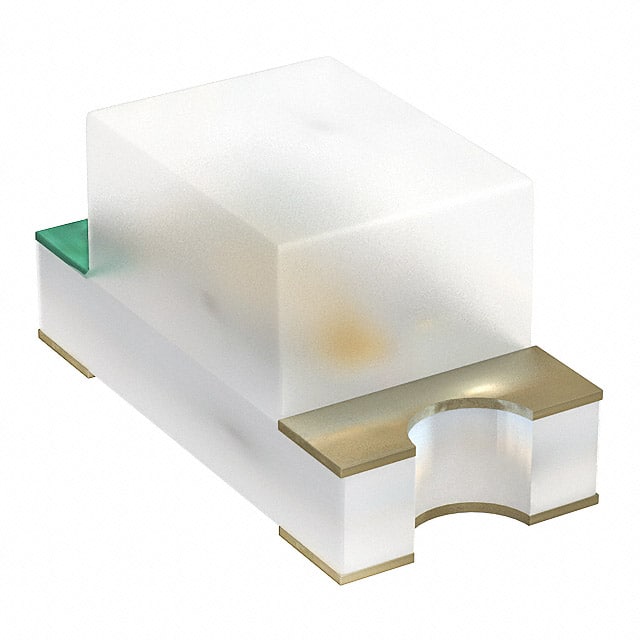

This Bivar Inc. SM0603RC is a discrete indicator LED designed for surface mount applications. It emits a red light with a wavelength of 700nm and a luminous intensity of 1mcd. The LED has a forward voltage of 2V and a typical forward current of 20mA. Its lens is clear and colorless, with a size of 1.00mm x 0.80mm, contributing to a wide viewing angle of 130°.
The component comes in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a maximum height of 0.80mm. The mounting type is surface mount, suitable for automated assembly processes. The LED is specified with RoHS3 compliance and an MSL rating of 1 Unlimited.
This LED is suitable for various indication applications where a small, surface-mountable red light source is required. Its clear lens and wide viewing angle ensure good visibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LED is red.
The typical forward voltage is 2V.
The typical forward current is 20mA.
The wavelength is 700nm.
The viewing angle is 130°.
The LED is in a 0603 (1608 Metric) package.
It is a surface mount component.
