| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

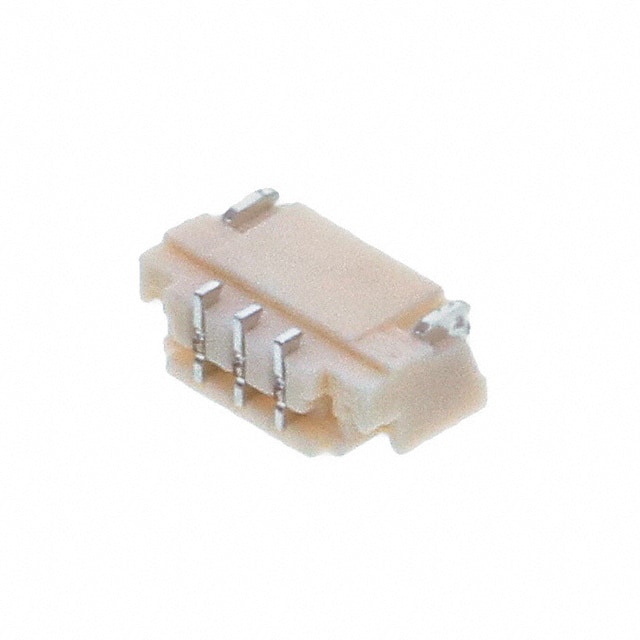

The SM03B-SURS-TF(LF)(SN) is a 3-position, single row shrouded header from JST's SUR series, featuring a 0.8mm pitch. It is designed for board-to-cable/wire connections and utilizes a surface mount, right angle mounting style with solder termination. The header is fully shrouded with a 4-wall design and includes a solder retention feature for secure attachment.
Electrical ratings include a current rating of 0.2A for AWG #36 wire and 0.5A for AWG #32 wire, with a voltage rating of 30V DC. The operating temperature range is -25°C to 85°C. Contact resistance is 20 mΩ maximum initial and 40 mΩ maximum after environmental tests, with insulation resistance of 100 MΩ minimum and withstanding voltage of 200 VAC/minute.
The header is constructed with a copper alloy contact material finished in tin, and a natural polyamide (nylon) insulator with a UL94 V-0 flammability rating. It is packaged in embossed tape with a standard quantity of 2000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.61 | $0.61 |
| 10+ | $0.52 | $0.52 |
| 100+ | $0.44 | $0.44 |
| 250+ | $0.39 | $0.39 |
| 1,000+ | $0.37 | $0.37 |
| 3,500+ | $0.34 | $0.34 |
| 7,000+ | $0.32 | $0.32 |
| 10,500+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.80mm (0.031 inches).
It has 3 positions in a single row, all loaded.
The current rating is 0.2A for AWG #36 wire and 0.5A for AWG #32 wire.
The voltage rating is 30V DC.
It uses surface mount, right angle mounting.
