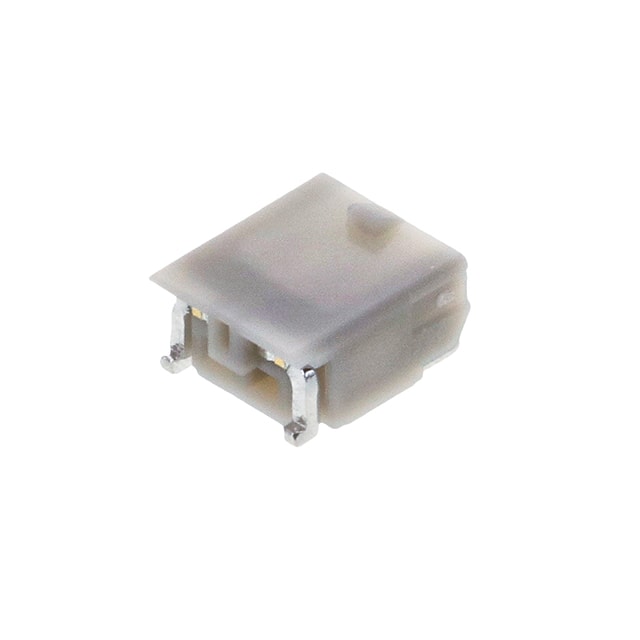

The JST SM02B-SFKH-TF is a 2-position, single row, 1.8mm pitch, surface mount, right angle male pin header from the SFK series. This connector is designed for wire-to-board applications and features a shrouded 4-wall design with locking ramp for secure connection.
The header uses square brass contacts with a tin (reflow) finish and is rated for 4 A (AWG #22 wire) and 250 V. It has a contact resistance of 10 mΩ initial and 20 mΩ after environmental tests, with an insulation resistance of 1000 MΩ minimum. The withstanding voltage is 1700 VAC.
It operates over a temperature range of -25°C to +85°C. The insulation material is gray polyamide (PA6T/Nylon 6T) with a flammability rating of UL94 V-0. The header includes solder retention features and is compatible with wire conductor sizes AWG #30 to #22 and insulation diameter 0.7 to 1.3 mm.
Packaging is embossed tape on a reel with a standard package quantity of 3000 pieces. The component is RoHS compliant and halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
| 10+ | $0.56 | $0.56 |
| 100+ | $0.48 | $0.48 |
| 250+ | $0.42 | $0.42 |
| 1,000+ | $0.40 | $0.40 |
| 3,000+ | $0.37 | $0.37 |
| 6,000+ | $0.35 | $0.35 |
| 12,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions in a single row.
The pitch is 1.80mm.
The current rating is 4 A (for AWG #22 wire).
The voltage rating is 250 V.
It is a surface mount, right angle header.
The operating temperature range is -25°C to +85°C.
Yes, it is RoHS compliant and also halogen-free.
