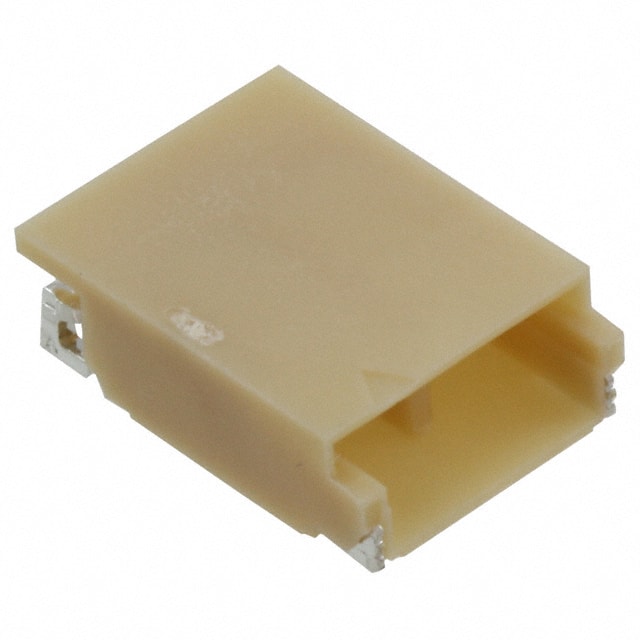

SM02B-BHSS-1-TB(LF)(SN) JST BHSS series 2-position single row 3.50mm pitch shrouded header with male pin contacts. Surface mount right angle termination with solder retention.
Mfr Part #:

SM02B-BHSS-1-TB(LF)(SN)

Available from 2 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST BHSS series 2-position single row 3.50mm pitch shrouded header with male pin contacts. Surface mount right angle termination with solder retention.
✓ Total Stock: 1,017 pcs
$ Price Range: $0.61 - $1.11

SM02B-BHSS-1-TB(LF)(SN) Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request N/A On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SM02B-BHSS-1-TB(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

SM02B-BHSS-1-TB(LF)(SN) Description

Short technical summary and product information.

The JST SM02B-BHSS-1-TB(LF)(SN) is a 2-position single row shrouded header from the BHSS series. It features a 3.50mm pitch and male pin contacts made of brass with a tin finish. The connector is designed for surface mount right angle mounting and uses solder termination.



This header is rated for 1A current and 1400V voltage, with an operating temperature range of -25°C to 85°C. The insulation is made of polyphthalamide (PPA) in natural color with a UL94 V-0 flammability rating. The shrouded 4-wall design includes a detent lock fastening type for secure mating.



The connector is intended for board to cable/wire applications and includes a solder retention feature for reliable attachment during assembly. The insulation height is 3.20mm.

SM02B-BHSS-1-TB(LF)(SN) Quick Information

Product Type: Header Connector
Series: BHSS
Canonical Name: JST BHSS Series 2-Position Single Row 3.50mm Pitch Shrouded Header, Surface Mount Right Angle, Tin Contacts
Subcategory: Shrouded Header

SM02B-BHSS-1-TB(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SM02B-BHSS-1-TB(LF)(SN) Estimated Pricing

Qty Low High
1+ $1.11 $1.11
10+ $0.94 $0.94
100+ $0.80 $0.80
500+ $0.71 $0.71
1,000+ $0.68 $0.68
2,000+ $0.63 $0.63
5,000+ $0.61 $0.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

SM02B-BHSS-1-TB(LF)(SN) Features

  • 2-position single row 3.50mm pitch header.
  • Surface mount right angle solder termination.
  • Shrouded 4-wall design with detent lock.
  • Rated for 1A current and 1400V voltage.
  • UL94 V-0 rated PPA insulation material.

SM02B-BHSS-1-TB(LF)(SN) Applications

  • Board to cable/wire interconnect applications.
  • Compact electronic device internal wiring.
  • Low-profile right angle connector designs.
  • Applications requiring shrouded header security.

SM02B-BHSS-1-TB(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SM02B-BHSS-1-TB(LF)(SN) have?

It has 2 positions in a single row.

What is the pitch of this header?

The pitch is 3.50mm.

What is the current rating of this connector?

The current rating is 1A.

What is the voltage rating?

The voltage rating is 1400V.

What mounting type does this header use?

It uses surface mount right angle mounting.

What is the operating temperature range?

The operating temperature range is -25°C to 85°C.

What is the insulation material and flammability rating?

The insulation material is polyphthalamide (PPA) with a UL94 V-0 flammability rating.
