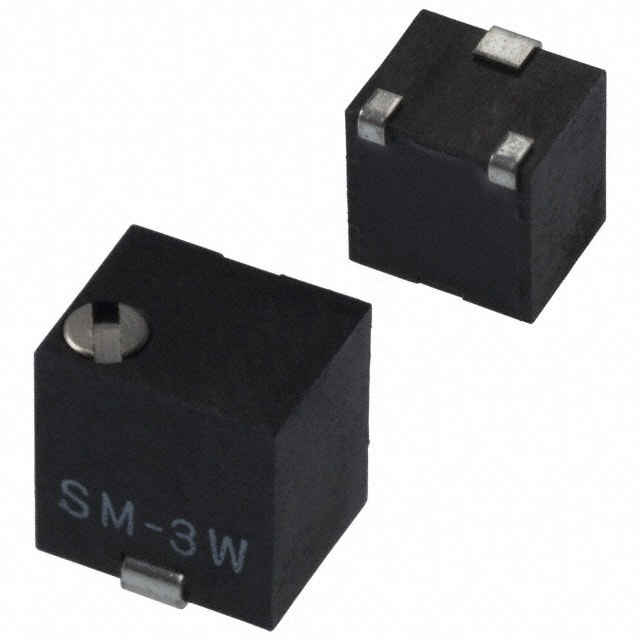

SM-3TW202 The Nidec SM-3TW202 is a surface mount trimmer potentiometer with a resistance of 2 kΩ and a tolerance of ±20%. It features a cermet resistive material and J lead termination.
Mfr Part #:

SM-3TW202

Available from 1 distributors
Mfr Name: Nidec
Nidec
The Nidec SM-3TW202 is a surface mount trimmer potentiometer with a resistance of 2 kΩ and a tolerance of ±20%. It features a cermet resistive material and J lead termination.
✓ Total Stock: 12 pcs
$ Price Range: $0.05

SM-3TW202 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SM-3TW202 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Power Rating
Resistance
Resistive Material
Tape & Reel
Temperature Coefficient
Termination Style
Tolerance
View Similar Products (0)

SM-3TW202 Description

Short technical summary and product information.

The Nidec SM-3TW202 is a surface mount trimmer potentiometer designed for fine adjustment applications. It offers a resistance value of 2 kΩ with a tolerance of ±20%. The component utilizes a cermet resistive material and is rated for 0.125W of power.



This trimmer potentiometer features 11 turns for precise control and a top adjustment type. The termination style is J lead, suitable for surface mounting. The size of the component is rectangular, measuring 0.154" x 0.126" face (3.90mm x 3.20mm).



Environmental compliance includes RoHS3 compliance and an MSL rating of 1 Unlimited. The REACH status is unaffected. The SM-3TW202 is part of the SM-3 series, designed for automatic mounting and reflow soldering processes.

SM-3TW202 Quick Information

Product Type: Trimmer Potentiometer
Series: SM-3
Canonical Name: SM-3TW202 Surface Mount Cermet Trimmer Potentiometer
Subcategory: Cermet Trimmer

SM-3TW202 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SM-3TW202 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

SM-3TW202 Features

  • 2 kΩ resistance with ±20% tolerance.
  • 0.125W power rating.
  • 11 turns for fine adjustment.
  • Surface mount with J lead termination.
  • Cermet resistive material.

SM-3TW202 Applications

  • Ideal for circuit calibration.
  • Suitable for automated assembly.
  • Used in electronic control systems.
  • Applications requiring precise resistance.
  • Compact surface mount designs.

SM-3TW202 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the SM-3TW202 trimmer potentiometer?

The SM-3TW202 has a resistance of 2 kΩ.

What is the tolerance for the SM-3TW202 trimmer potentiometer?

The tolerance for the SM-3TW202 is ±20%.

What is the power rating of the SM-3TW202 trimmer potentiometer?

The power rating is 0.125W (1/8W).

How many turns does the SM-3TW202 trimmer potentiometer have?

The SM-3TW202 has 11 turns.

What type of adjustment does the SM-3TW202 trimmer potentiometer feature?

It features top adjustment.

What is the mounting type for the SM-3TW202 trimmer potentiometer?

The mounting type is surface mount.

Is the SM-3TW202 trimmer potentiometer RoHS compliant?

Yes, the SM-3TW202 is RoHS3 Compliant.
