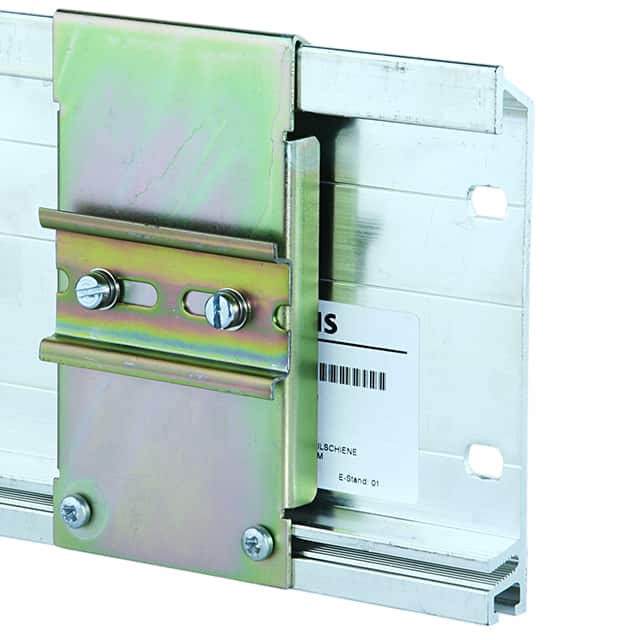

The PULS, LP SLZ12 is a DIN Rail Adapter Kit specifically designed for use with S7-300 Simatic Rails. This accessory facilitates the mounting of compatible power supplies onto standard DIN rails, ensuring a secure and organized installation.
The power supply unit it is designed for provides 180W of output power, with a nominal DC output voltage of 12V. The output current can reach up to 15A at 12V, with a maximum of 13.5A at 15V. The unit operates with AC input voltages ranging from 100 to 240V and DC input voltages from 110 to 150V. It features a typical efficiency of 91.8% and a power factor of 0.92.
Designed for industrial environments, the SLZ12 adapter kit supports DIN rail mounting and operates within a temperature range of -25°C to 70°C. Connection is made via spring clamps. The compact dimensions of the associated power supply (60 x 124 x 117 mm) and its weight of 930g make it suitable for various control cabinet applications.
The nominal DC output voltage is 12 V.
The maximum output current at 12V is 15 A.
The total output power is 180 W.
The operating temperature range is -25 °C to 70 °C.
The unit is mounted using the DIN rail method.
The typical efficiency is 91.8 %.
Yes, it has a DC-OK signal.
