SLWSTK6065A Wireless Starter Kit for developing applications with the EFR32FG Flex Gecko SoC. Provides dual-band operation at 169 MHz and 2.4 GHz with 19.5 dBm maximum output power.
Mfr Part #:

SLWSTK6065A

Available from 1 distributors
Mfr Name: Silicon Labs
Silicon Labs
Wireless Starter Kit for developing applications with the EFR32FG Flex Gecko SoC. Provides dual-band operation at 169 MHz and 2.4 GHz with 19.5 dBm maximum output power.
✓ Total Stock: 4 pcs
$ Price Range: $281.08

SLWSTK6065A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SLWSTK6065A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
For Use With
Frequency
Kit Contents
Kit Type
Supplied Contents
Type
View Similar Products (0)

SLWSTK6065A Description

Short technical summary and product information.

The Silicon Labs SLWSTK6065A Wireless Starter Kit is a complete development platform for the EFR32FG1P133F256GM48 Flex Gecko Wireless SoC. The kit includes two Wireless Starter Kit Mainboards (BRD4001A) and two radio boards (BRD4251D) that together support dual-band operation at 169 MHz (via SMA connector) and 2.4 GHz (via integrated Inverted-F PCB antenna).



The radio boards feature the EFR32FG1P133F256GM48 SoC with 256 kB flash and 32 kB RAM, and deliver up to 19.5 dBm output power. The mainboard provides Ethernet and USB connectivity, an on-board SEGGER J-Link debugger, Advanced Energy Monitor, Packet Trace Interface, Si7021 humidity/temperature sensor, a 128x128 pixel Memory LCD, user LEDs and pushbuttons, and a 20-pin expansion header.

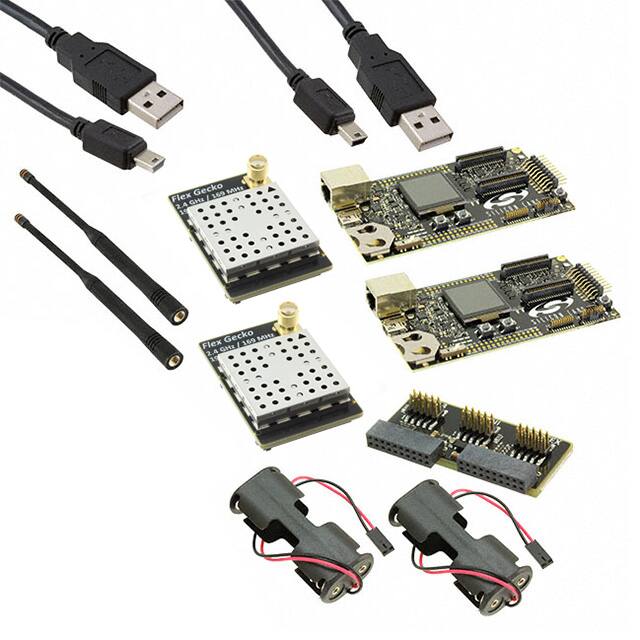

The kit's supplied contents include two mainboards, two radio boards, two 169 MHz antennas, CR2032 and AA battery power options, USB cables, and a WSTK debug adapter.

SLWSTK6065A Quick Information

Product Type: RF Wireless Starter Kit
Series: EFR32 Flex Gecko
Canonical Name: Silicon Labs SLWSTK6065A EFR32FG 2400/169MHz Wireless Starter Kit
Subcategory: RF Development Kit

SLWSTK6065A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SLWSTK6065A Estimated Pricing

Qty Low High
1+ $281.08 $281.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

SLWSTK6065A Features

  • Dual-band 169 MHz and 2.4 GHz operation.
  • 19.5 dBm maximum RF output power.
  • 256 kB flash and 32 kB RAM SoC.
  • Integrated J-Link debugger and energy monitor.
  • Includes two complete starter kit nodes.

SLWSTK6065A Applications

  • Develop and debug Flex Gecko wireless applications.
  • Evaluate dual-band sub-GHz and 2.4 GHz connectivity.
  • Prototype IoT sensor nodes with onboard sensors.

SLWSTK6065A FAQs

5 frequently asked questions generated from this part’s specifications.
What frequency bands does the SLWSTK6065A support?

It supports 169 MHz and 2.4 GHz bands.

What is the maximum output power of the radio board?

The maximum output power is 19.5 dBm.

Which EFR32 SoC is used on the radio board?

The EFR32FG1P133F256GM48 with 256 kB flash and 32 kB RAM.

What antenna options are provided?

An inverted-F PCB antenna for 2.4 GHz and an SMA connector for 169 MHz. Two 169 MHz antennas are included.

What is included in the kit contents?

Two BRD4001A mainboards, two BRD4251D radio boards, two 169 MHz antennas, two CR2032 batteries, two AA battery holders, two USB cables, and one debug adapter.
