| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
161 pcs
|
161 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

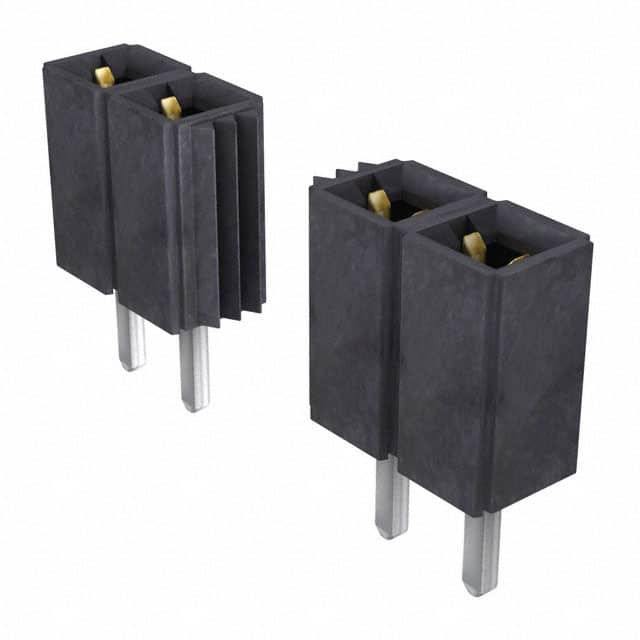

The Samtec SLW-120-01-F-S is a low profile socket strip from the SLW series, designed for board-to-board interconnects. This 20 position single row receptacle uses a through hole solder termination and a push-pull fastening mechanism. The contacts are phosphor bronze with gold flash on the mating surface and matte tin on the tail, providing reliable electrical performance.
Key electrical specifications include a current rating of 5.2 A per pin (with 2 pins powered) and a voltage rating of 406 VAC. The operating temperature range is -55°C to +125°C when mated with gold-plated contacts. The insulator is black glass-filled polyester, and the contact material is phosphor bronze.
Mechanical features include a 2.54mm pitch, single row configuration, and an insulation height of 4.57mm. The mated stacking height is typically 6.09mm. The part is not lead-free solderable and requires lead wave soldering per the datasheet. This receptacle mates with Samtec TSW, TLW, and other compatible pin header series.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.22 | $3.22 |
| 50+ | $2.62 | $2.62 |
| 100+ | $2.22 | $2.22 |
| 500+ | $2.20 | $2.20 |
| 1,000+ | $1.70 | $1.70 |
| 2,000+ | $1.62 | $1.62 |
| 5,000+ | $1.46 | $1.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, all loaded.
2.54mm (0.100").
5.2 A per pin with 2 pins powered.
406 VAC maximum.
Through hole solder termination.
-55°C to +125°C with gold contact finish.
Gold flash on mating contact, matte tin on tail.
