| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,445 pcs
|
7445 pcs | On Request | 1 | On Request | On Request | 640 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Plating Underplating | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

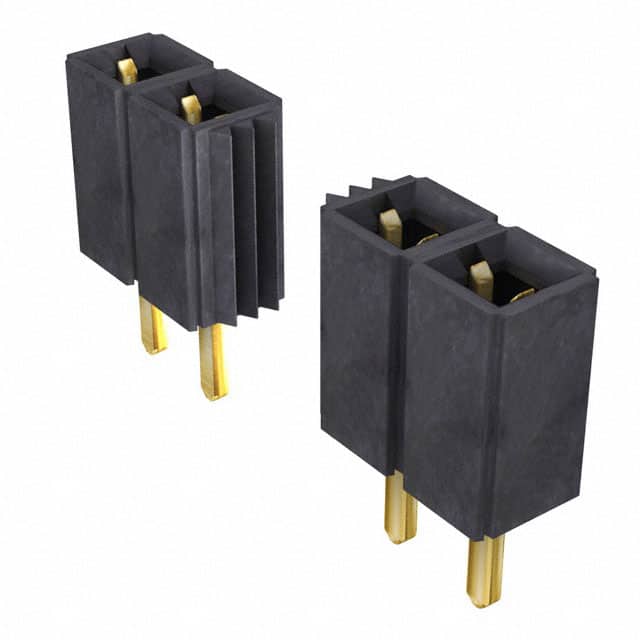

The SLW-114-01-G-S is a low-profile socket strip from Samtec's SLW series. It features 14 positions in a single row with a 2.54mm (0.100") pitch, designed for through-hole soldering. The connector uses forked contacts made of phosphor bronze with a 20 µ" (0.51 µm) gold plating on the contact area and a 50 µ" nickel underplating.
Electrical ratings include a current of 5.2 A per pin (with 2 pins powered) and a voltage rating of 406 VAC. The operating temperature range is -55°C to +125°C with gold plating. The insulation material is black G.F. polyester, and the mated stacking height is 6.09mm.
This receptacle is suitable for board-to-board applications with a push-pull fastening type. It mates with Samtec TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW, and TSM series header pins. The solder termination is lead-free solderable only via lead wave soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.13 | $3.13 |
| 50+ | $3.09 | $3.09 |
| 100+ | $2.61 | $2.61 |
| 500+ | $2.35 | $2.35 |
| 1,000+ | $2.08 | $2.08 |
| 2,000+ | $2.05 | $2.05 |
| 5,000+ | $1.97 | $1.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
2.54mm (0.100").
5.2 A per pin with 2 pins powered.
406 VAC.
Through hole.
-55°C to +125°C.
20 µin (0.51 µm) gold over 50 µin nickel.
