| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

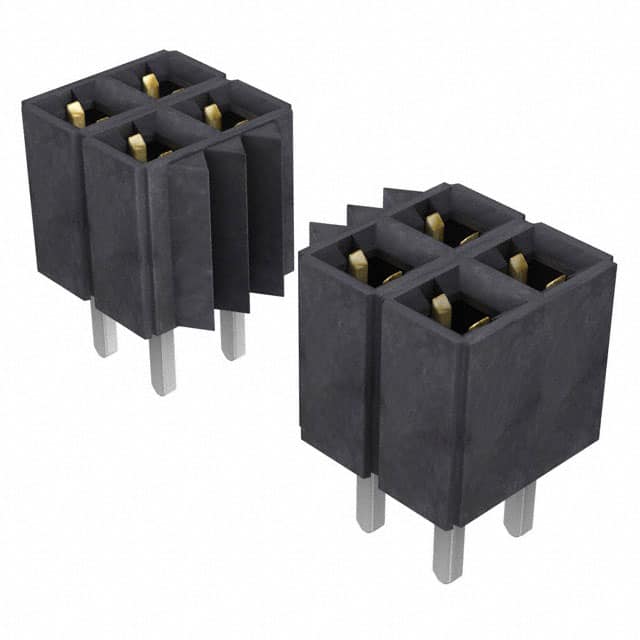

The Samtec SLW-110-01-S-D is a 20 position board-to-board receptacle with a 2.54mm (0.100") pitch. It features 2 rows of forked contacts with through hole mounting and solder termination. The push-pull fastening style allows easy mating and unmating. Contacts are finished with 30.0µin (0.76µm) tin, ensuring reliable conductivity. The black insulation has a height of 4.57mm (0.180"), and the mated stacking height is 6.09mm. Operating temperature ranges from -55°C to 125°C, making it suitable for a wide range of environments.
This connector is designed for board-to-board interconnections in electronic assemblies. Its compact size and standard pitch enable dense PCB layouts. The forked contact design provides a secure connection with low insertion force. All 20 positions are loaded, and the part is through-hole solderable for robust mechanical attachment.
Typical applications include data communication equipment, industrial controls, and test instrumentation. The SLW series is known for reliability and compatibility with standard 0.100" header systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.12 | $4.12 |
| 25+ | $4.02 | $4.02 |
| 50+ | $3.44 | $3.44 |
| 100+ | $3.26 | $3.26 |
| 500+ | $2.52 | $2.52 |
| 2,500+ | $2.41 | $2.41 |
| 5,000+ | $2.30 | $2.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 20 positions, all loaded.
The pitch is 2.54mm (0.100").
Through hole mounting with solder termination.
Tin finish with 30.0µin (0.76µm) thickness.
-55°C to 125°C.
Board to board.
Push-pull fastening.
