| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Connection Method | |
| Country of Origin | |
| Dimensions | |
| Efficiency | |
| For Use With | |
| Input Voltage | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Weight |

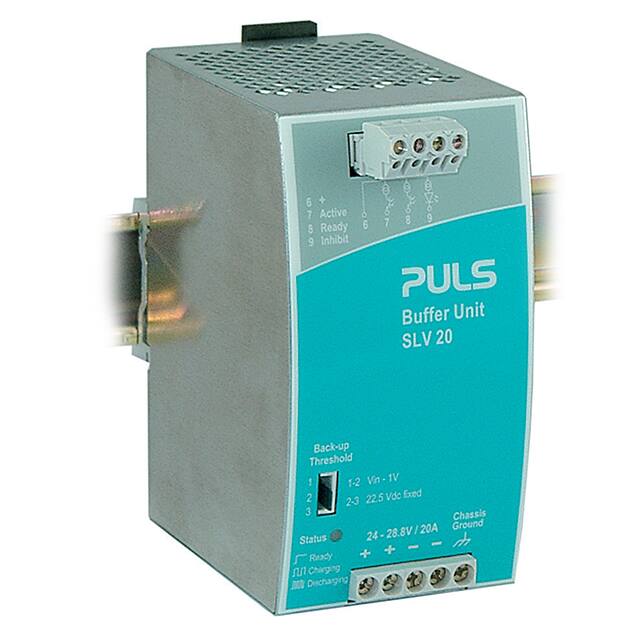

The PULS, LP SLV20.200 is a buffer module specifically designed to work with 24V power supplies. It accepts an AC input voltage range of 200-240V, providing a stable DC output voltage that can be adjusted between 24V and 28V.
With a nominal output current of 20A at 24V and 17.1A at 28V, this module delivers a total output power of 480W. It features an efficiency of up to 90.4% and can maintain full output power across an operating temperature range of 0 to 60°C.
The unit is designed for easy integration into systems, featuring DIN rail mounting and screw terminal connections. Its dimensions are 220mm x 124mm x 102mm, and it weighs 1800g. The module comes with a 36-month warranty and is manufactured in the Czech Republic.
200-240 VAC.
24 Vdc nominal, adjustable from 24 to 28 Vdc.
20 A at 24 Vdc and 17.1 A at 28 Vdc.
0 to 60 °C (full output power).
220 x 124 x 102 mm (WxHxD), DIN rail mounting with screw terminals.
Up to 90.4% typical.
