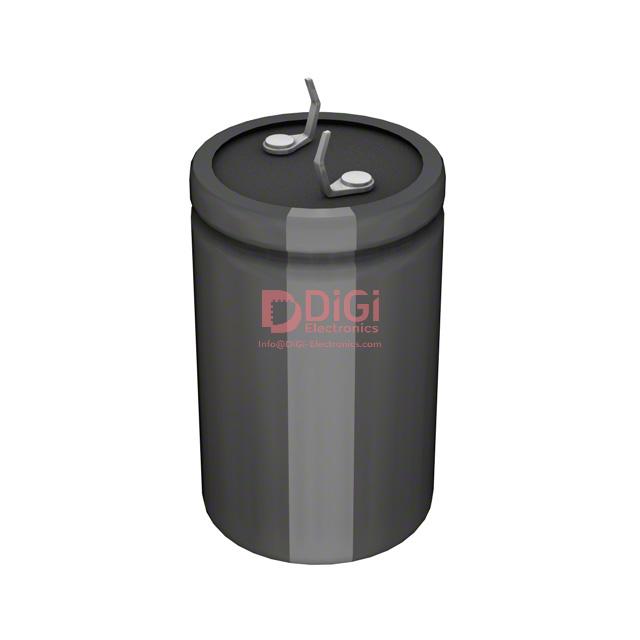

SLPX682M025A3P3 The Cornell Dubilier Electronics (CDE) SLPX682M025A3P3 is an aluminum electrolytic capacitor with a capacitance of 6800µF and a rated voltage of 25V. It features snap-in termination for easy mounting.
Mfr Part #:

SLPX682M025A3P3

Available from 1 distributors
Mfr Name: Cornell Dubilier Electronics (CDE)
Cornell Dubilier Electronics (CDE)
The Cornell Dubilier Electronics (CDE) SLPX682M025A3P3 is an aluminum electrolytic capacitor with a capacitance of 6800µF and a rated voltage of 25V. It features snap-in termination for easy mounting.
✓ Total Stock: 1 pcs
$ Price Range: $1.32

SLPX682M025A3P3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SLPX682M025A3P3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
ESR (Equivalent Series Resistance)
Failure Rate
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Termination Style
Tolerance
View Similar Products (0)

SLPX682M025A3P3 Description

Short technical summary and product information.

This Cornell Dubilier Electronics (CDE) SLPX682M025A3P3 is an aluminum electrolytic capacitor from the LPW series. It offers a capacitance of 6800µF with a tolerance of ±20% and is rated for a voltage of 25V.



The capacitor has an Equivalent Series Resistance (ESR) of 110mOhm at 120Hz and a typical ripple current handling of 2.87A at low frequency and 3.157A at high frequency. It is designed for general purpose applications and operates within a temperature range of -40°C to 85°C, with a rated lifetime of 1000 hours at 85°C.



Featuring snap-in termination and a lead spacing of 10.00mm, this capacitor has a diameter of 22.00mm. The product status is listed as obsolete.

SLPX682M025A3P3 Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: LPW
Canonical Name: Cornell Dubilier Electronics (CDE) LPW682M1EN35V-W Aluminum Electrolytic Capacitor 6800µF 25V
Subcategory: Aluminum Electrolytic

SLPX682M025A3P3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SLPX682M025A3P3 Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

SLPX682M025A3P3 Features

  • 6800µF capacitance at 25V rating.
  • Snap-in termination for easy mounting.
  • 1000 hours lifetime at 85°C.
  • General purpose application capacitor.
  • Operating temperature range -40°C to 85°C.

SLPX682M025A3P3 Applications

  • Suitable for general purpose applications.
  • Designed for use in various electronic circuits.
  • Requires through-hole mounting.
  • Snap-in leads for quick assembly.

SLPX682M025A3P3 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance of the SLPX682M025A3P3 capacitor?

The capacitance is 6800 µF.

What is the rated voltage for the SLPX682M025A3P3 capacitor?

The rated voltage is 25 V.

What is the operating temperature range for this capacitor?

The operating temperature range is -40°C to 85°C.

What is the lifetime of the SLPX682M025A3P3 at 85°C?

The lifetime is 1000 Hrs at 85°C.

What type of termination does the SLPX682M025A3P3 capacitor use?

It uses snap-in termination.
