| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Plating | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination |

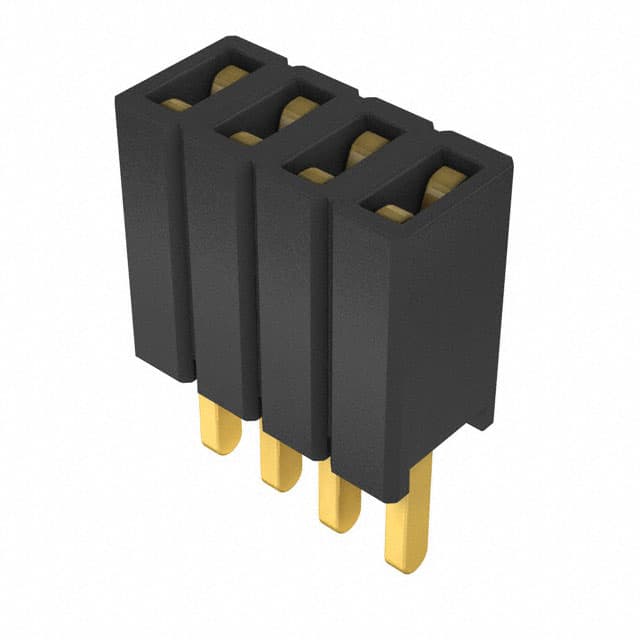

The Samtec SLM-104-01-G-S is a through-hole mounting PCB receptacle socket strip from the SLM micro low profile series. It features 4 positions in a single row configuration with a 1.27mm (0.050") pitch between contacts. The connector utilizes forked phosphor bronze contacts with a 20 µ" (0.51 µm) gold finish on the contact area and gold flash on the balance, providing reliable electrical performance. The insulator is made of black glass filled polyester.
This receptacle is designed for board-to-board stacking applications and mates with Samtec HTMS, TMS, MTMS, DWM, HDWM, FTR, and HMTMS series headers. It is rated for 5.2 A per pin (2 pins powered) with an operating temperature range of -55°C to +125°C. The push-pull fastening type allows for easy mating and unmating. The connector has an insulation height of 4.57mm and a contact length of 2.92mm.
The SLM-104-01-G-S is packaged in bulk and is designed for lead wave soldering only. It is RoHS3 compliant and REACH unaffected. The part is halogen free and carries a California Proposition 65 warning for nickel exposure.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
| 50+ | $1.00 | $1.00 |
| 100+ | $0.82 | $0.82 |
| 500+ | $0.72 | $0.72 |
| 1,000+ | $0.60 | $0.60 |
| 2,500+ | $0.54 | $0.54 |
| 5,000+ | $0.47 | $0.47 |
| 10,000+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions in a single row.
The pitch is 1.27mm (0.050").
The current rating is 5.2 A per pin with 2 pins powered.
It is a through hole mounting connector with solder termination.
The operating temperature range is -55°C to +125°C.
The contacts have 20 µ" (0.51 µm) gold on the contact area and gold flash on the balance.
Yes, it is RoHS3 compliant.
