Mfr Part #:

SLM-103-01-G-D

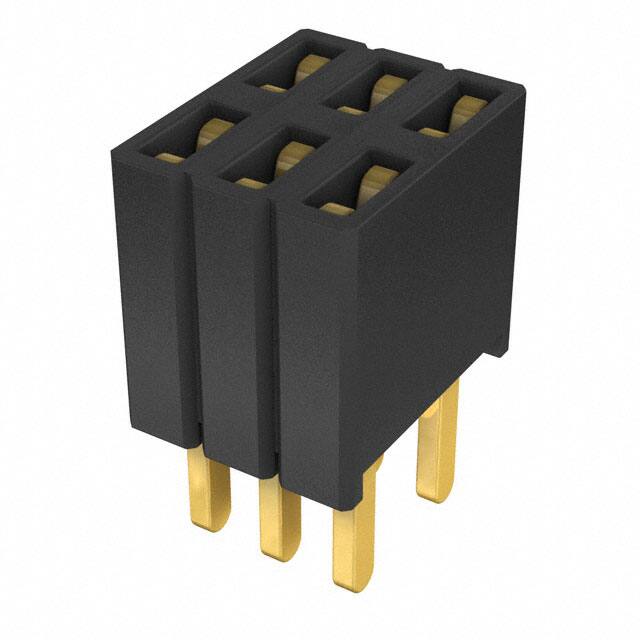

Samtec SLM-103-01-G-D is a 6 position, 2 row, 1.27mm pitch through hole receptacle with gold plated phosphor bronze contacts. Rated for 5.2A per pin and -55°C to 125°C operating temperature.

✓ Total Stock: 40 pcs

$ Price Range: $0.59 - $1.61

SLM-103-01-G-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	40 pcs On Request	40 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SLM-103-01-G-D Description

Short technical summary and product information.

The Samtec SLM-103-01-G-D is a 6 position, 2 row, 1.27mm pitch through hole receptacle from the SLM series. It features forked contacts with 20µ" gold plating over 50µ" nickel on phosphor bronze. The insulator is black glass filled polyester with a push-pull fastening type. This board-to-board style connector has an insulation height of 4.57mm and a contact length of 2.92mm. It is rated for 5.2A per pin (2 pins powered) and operates from -55°C to 125°C. The insertion depth range is 2.03mm to 3.05mm. Termination is through hole solder. This part is not lead-free solderable and requires lead wave soldering only.

SLM-103-01-G-D Quick Information

Product Type: Receptacle

Series: SLM

Canonical Name: Samtec SLM Series 6 Position 1.27mm Pitch Through Hole Receptacle

Subcategory: Board to Board

SLM-103-01-G-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SLM-103-01-G-D Estimated Pricing

Qty	Low	High
1+	$1.61	$1.61
25+	$1.34	$1.34
50+	$1.25	$1.25
100+	$1.03	$1.03
1,000+	$0.82	$0.82
2,500+	$0.76	$0.76
5,000+	$0.65	$0.65
10,000+	$0.59	$0.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

SLM-103-01-G-D Features

6 position 2 row 1.27mm pitch receptacle.
Gold plated phosphor bronze forked contacts.
Rated 5.2A per pin at 2 pins powered.
Through hole solder termination.
Operating temperature -55°C to 125°C.

SLM-103-01-G-D Applications

Board-to-board interconnects in compact designs.
Signal and low power distribution applications.
Industrial control and instrumentation systems.

SLM-103-01-G-D FAQs

7 frequently asked questions generated from this part’s specifications.

What is the pitch of the SLM-103-01-G-D?

The pitch is 1.27mm (0.050").

How many positions does the SLM-103-01-G-D have?

It has 6 positions arranged in 2 rows.

What is the current rating of the SLM-103-01-G-D?

The current rating is 5.2A per pin with 2 pins powered.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the mounting type?

Through hole with solder termination.

What contact finish does the SLM-103-01-G-D have?

Gold finish with 20.0µin (0.51µm) thickness over 50µ" nickel.

Is the SLM-103-01-G-D lead-free solderable?

No, it is not lead-free solderable. Lead wave soldering only.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Samtec Inc.
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	20.0µin (0.51µm)
Contact Length	2.92mm (0.115")
Contact Material	Phosphor Bronze
Contact Type	Forked
Current Rating	5.2 A per pin
Fastening Type	Push-Pull
Insertion Depth	2.03mm to 3.05mm
Insulation Color	Black
Insulation Height	4.57mm (0.180")
Insulator Material	Black Glass Filled Polyester
Lead Spacing	1.27 mm
Lead-Free Solderable	No, Lead Wave Only
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Plating	Au over 50 µ" (1.27 µm) Ni
Row Spacing	0.100" (2.54mm)
Style	Board to Board
Tape & Reel	No
Termination	Solder
