| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Humidity | |
| Body Material | |
| Cable Length | |
| Connection Method | |
| Current Consumption | |
| Ingress Protection | |
| Light Source | |
| Maximum Switching Load Current | |
| Operating Temperature | |
| Output Configuration | |
| Power Supply Voltage | |
| Response Time | |
| Sensing Distance | |
| Sensing Method | |
| Tape & Reel | |
| Voltage |

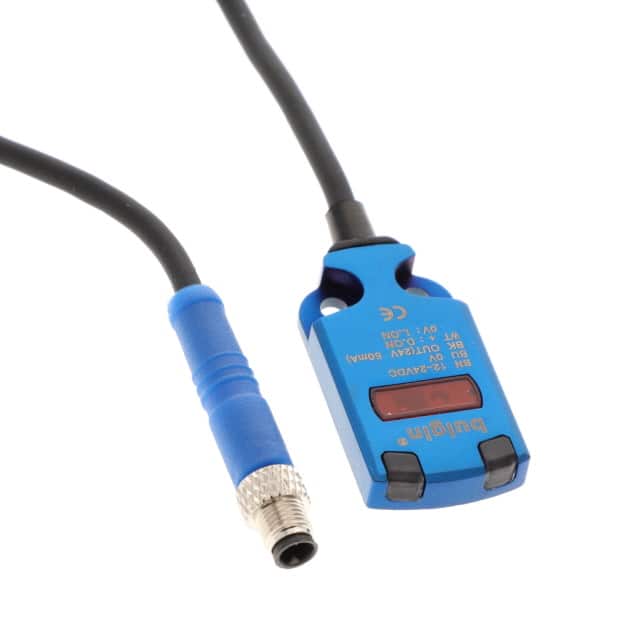

The Bulgin SLLP3002M5 is a photoelectric sensor from the Slim Line series, engineered for robust performance in manufacturing and industrial automation. This diffuse reflective sensor offers a sensing distance range of 2mm to 30mm, making it suitable for various detection tasks.
Key electrical specifications include a 12-24 VDC power supply voltage and an NPN output configuration with a Light-ON operation mode. It has a response time of 500µs and a maximum switching load current of 50 mA. The sensor is built with a durable Stainless Steel 316 body and is sealed to IP67 for protection against dust and water ingress.
This sensor comes with a 2-meter cable and connector termination, providing flexibility in installation. The operating temperature range is -10 to 50°C, and it operates within an ambient humidity range of 35-85%.
Designed for reliability and cost-effectiveness, the SLLP3002M5 is a versatile sensing solution for automation applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The sensing distance for the SLLP3002M5 is from 2mm to 30mm.
The SLLP3002M5 has an NPN output configuration with Light-ON operation.
The operating voltage range for the SLLP3002M5 is 12-24 VDC.
The Bulgin SLLP3002M5 has an IP67 ingress protection rating.
The operating temperature range is -10 to 50°C.
The cable length is 2 meters.
