SLG59M1512V The SLG59M1512V is a dual-channel load switch from Dialog Semiconductor, featuring 80mΩ on-resistance and a 1A current rating per channel. It operates with a supply voltage range of 2.5V to 5.5V.
Mfr Part #:

SLG59M1512V

Available from 1 distributors
Mfr Name: Dialog Semiconductor
Dialog Semiconductor
The SLG59M1512V is a dual-channel load switch from Dialog Semiconductor, featuring 80mΩ on-resistance and a 1A current rating per channel. It operates with a supply voltage range of 2.5V to 5.5V.
✓ Total Stock: 18,000 pcs
$ Price Range: $2.16

SLG59M1512V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
18,000 pcs
On Request
18000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SLG59M1512V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Halogen Free
Input Voltage
Mounting Type
Supply Voltage
View Similar Products (0)

SLG59M1512V Description

Short technical summary and product information.

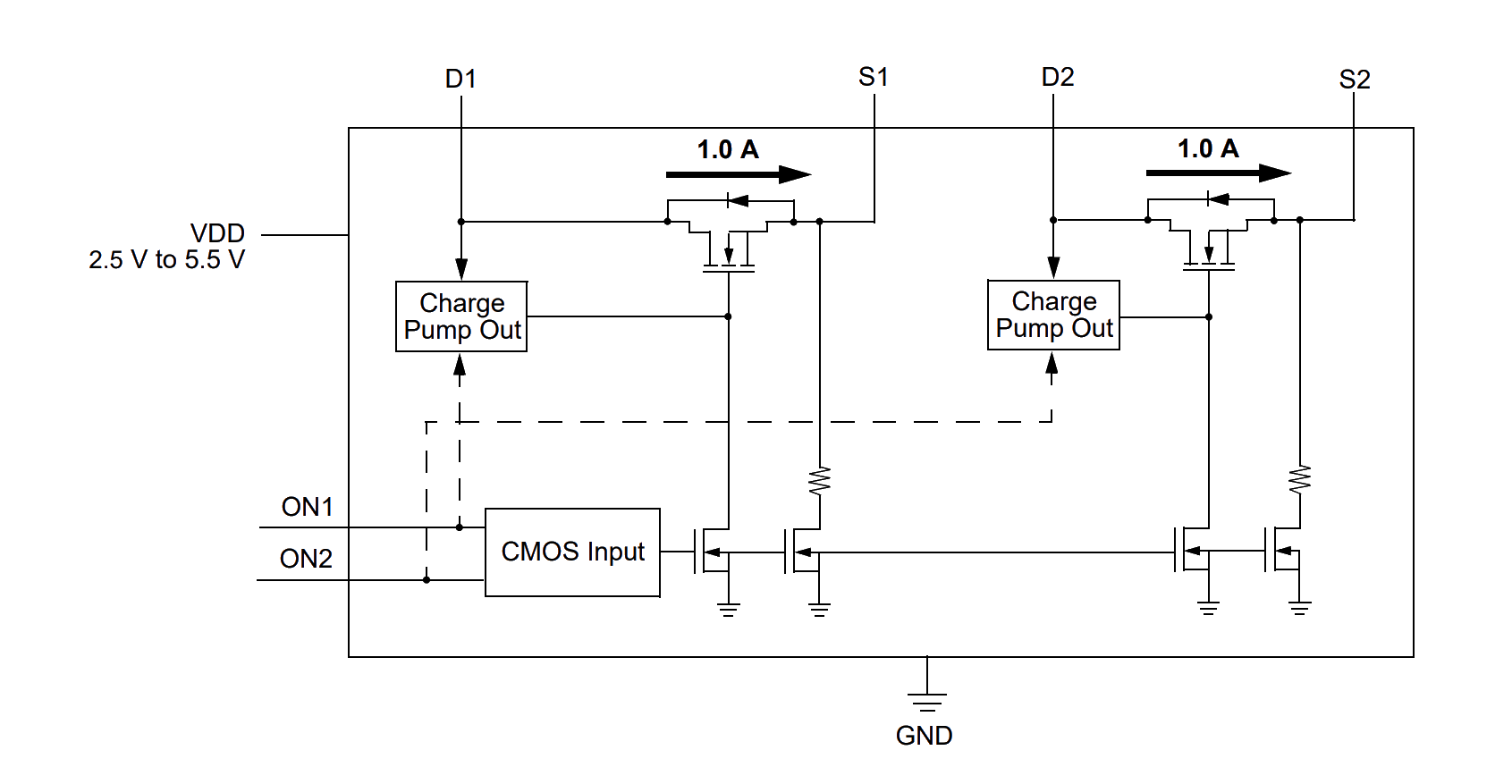

The SLG59M1512V is a dual N-channel load switch designed for power-rail switching applications. It offers two 80mΩ MOSFETs, each rated for 1.0A, controlled by individual ON pins. The device supports a supply voltage range of 2.5V to 5.5V.



Key features include integrated VGS charge pumps, user-selectable ramp rate control via an external resistor, thermal shutdown protection, and an integrated discharge resistor. The load switch is packaged in an ultra-small 1.0 x 1.6 mm STDFN-8 package, suitable for surface mounting.



This load switch is optimized for high-current point-of-load applications and is commonly found in devices such as notebook/laptop/tablet PCs, smartphones, high-definition digital cameras, and set-top boxes.

SLG59M1512V Quick Information

Product Type: Load Switch
Canonical Name: SLG59M1512V Dual Channel Load Switch
Subcategory: Special Purpose Transistors

SLG59M1512V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

SLG59M1512V Estimated Pricing

Qty Low High
1+ $2.16 $2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

SLG59M1512V Features

  • Dual 80mΩ, 1.0A rated MOSFETs
  • Adjustable output voltage slew rate
  • Integrated discharge resistor
  • Protected by thermal shutdown
  • Pb-Free / Halogen-Free / RoHS compliant

SLG59M1512V Applications

  • Ideal for power-rail switching
  • Used in notebook and tablet PCs
  • Suitable for smartphones
  • Applicable in digital cameras
  • Designed for set-top boxes

SLG59M1512V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the on-resistance of the SLG59M1512V load switch?

The typical on-resistance for each MOSFET channel is 80 mΩ.

What is the current rating per channel for the SLG59M1512V?

Each channel is rated to handle 1.0 A.

What is the operating supply voltage range for the SLG59M1512V?

The device operates with a supply voltage (VDD) ranging from 2.5 V to 5.5 V.

What type of package is the SLG59M1512V in?

The SLG59M1512V is supplied in an 8-pin STDFN package measuring 1.0 x 1.6 mm.

Does the SLG59M1512V have thermal shutdown protection?

Yes, the SLG59M1512V is protected by thermal shutdown.

Is the SLG59M1512V RoHS compliant?

The RoHS status is listed as RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SLG59M1512V?

The Moisture Sensitivity Level (MSL) is 1.
