| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

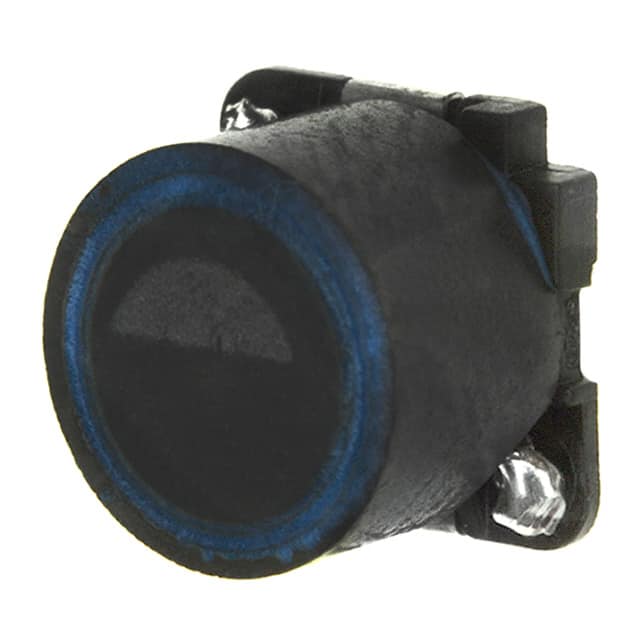

The TDK SLF7055T-150M2R1-3PF is a shielded, wound ferrite inductor designed for power circuits. It provides an inductance value of 15µH with a tolerance of ±20% and a rated current of 2.2A (Isat) or 2.1A (Itemp).
This component operates within a temperature range of -40°C to +105°C and has a low DC resistance of 61mOhm maximum. Its dimensions are 7.00mm x 7.00mm x 5.80mm, making it suitable for surface mounting.
Applications for this inductor include thin-screen TVs, LCDs, AV equipment, gaming equipment, and other electrical devices requiring reliable power management. The magnetic shield type construction ensures effective performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 15µH.
The rated current is 2.2A based on Isat (inductance change rate) and 2.1A based on Itemp (temperature increase).
The maximum DC resistance is 61mOhm.
The operating temperature range is -40°C to +105°C, including self-temperature rise.
The dimensions are 7.00mm x 7.00mm x 5.80mm.
It is a shielded, drum core, wirewound inductor.
The RoHS status is RoHS3 Compliant.
