| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current (Isat) | |
| Rated Current (Itemp) | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

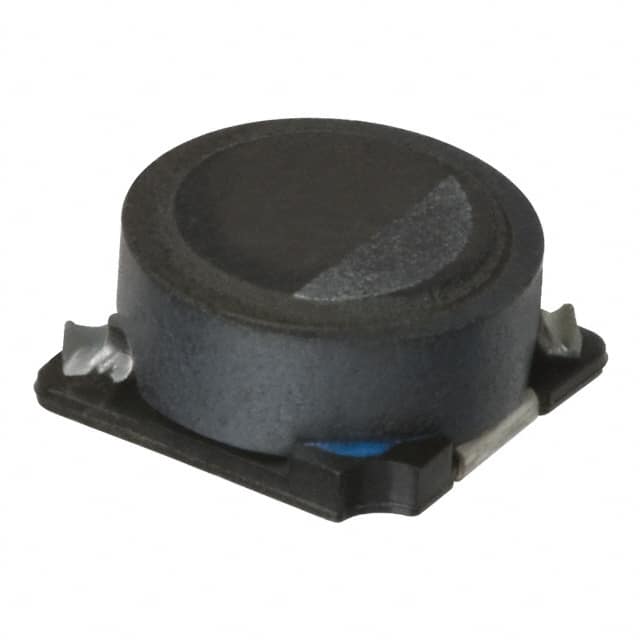

The SLF6028T-680MR50-PF is a fixed inductor from TDK Corporation's SLF6028T series. It features a drum core wirewound construction with ferrite material and is fully shielded. The component offers an inductance of 68 µH with a tolerance of ±20%.
This inductor is rated for a continuous current of 780 mA and has a maximum DC resistance of 348 mOhm. The saturation current (Isat) is 1.6 A and the temperature rise current (Itemp) is 2.5 A. It operates over a temperature range of -40°C to +105°C.
The SLF6028T-680MR50-PF is designed for surface mount applications. Its shielded construction helps reduce electromagnetic interference, making it suitable for power supply and DC-DC converter circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 68 µH with a tolerance of ±20%.
The continuous current rating is 780 mA.
The maximum DC resistance is 348 mOhm.
The operating temperature range is -40°C to +105°C.
Yes, the SLF6028T-680MR50-PF is a shielded inductor.
The saturation current (Isat) is 1.6 A.
The temperature rise current (Itemp) is 2.5 A.
