| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| ESD Protection | |
| Forward Voltage | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Dissipation | |
| Power Line Protection | |
| Response Time | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The SLD8S15A is a unidirectional TVS diode from Littelfuse designed to protect sensitive electronics from voltage transients such as inductive load switching and alternator load dump in automotive applications. It features a reverse standoff voltage of 15V and a breakdown voltage range of 16.7V to 18.5V at 5mA test current. The device clamps at a maximum of 24.4V when subjected to a 286A peak pulse current (10/1000µs waveform) and can handle 7000W of peak pulse power under the same conditions. It also offers 2200W peak pulse power for a 1.10ms x 150ms waveform.

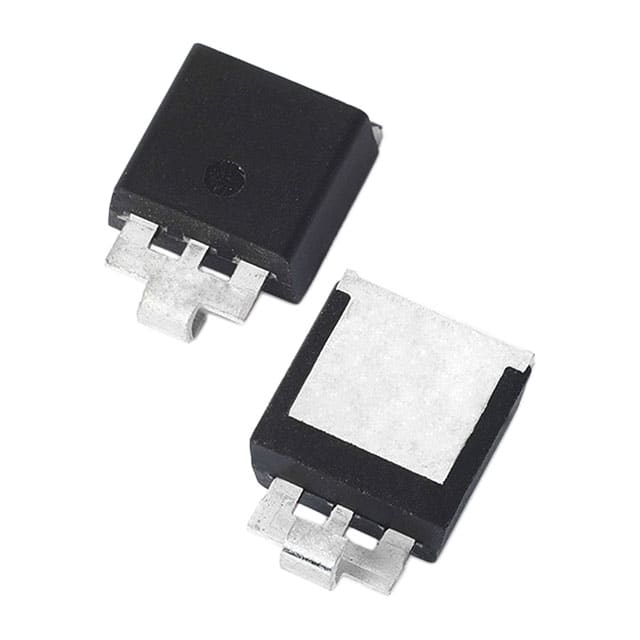

The SLD8S15A is housed in a surface-mount SMTO-263 package and is AEC-Q101 qualified for automotive use. It provides ESD protection up to 30kV (air and contact) per IEC 61000-4-2 and is EFT compliant per IEC 61000-4-4. The device has a fast response time of less than 1.0ps and operates over a junction temperature range of -55°C to 175°C. It is RoHS compliant, halogen free, and meets MSL level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.38 | $4.38 |
| 10+ | $2.81 | $2.81 |
| 100+ | $2.11 | $2.11 |
| 500+ | $1.65 | $1.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 15V.
The breakdown voltage is 16.7V to 18.5V at a test current of 5mA.
The maximum clamping voltage is 24.4V at a peak pulse current of 286A (10/1000µs waveform).
The peak pulse power is 7000W for a 10/1000µs waveform and 2200W for a 1.10ms x 150ms waveform.
It is available in a surface-mount SMTO-263 package.
Yes, it is AEC-Q101 qualified for automotive applications.
The operating junction temperature range is -55°C to 175°C.
