| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Turn On Time | |
| Type | |
| Voltage |

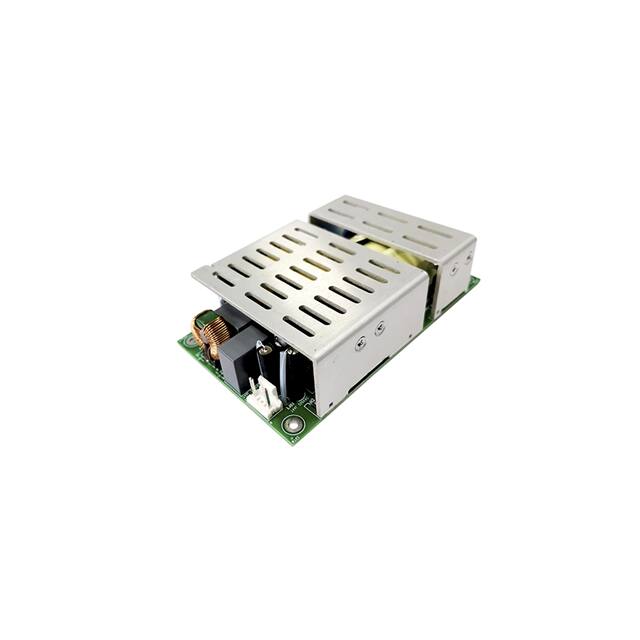

The SL Power SLB300S18K is an open frame AC/DC converter designed for industrial and medical applications. It provides a single 18V output with a power rating of 200W, expandable to 301W with forced air.
Key electrical specifications include a universal input voltage range of 80 to 264 VAC, 92% typical efficiency, and a total regulation of ±3%. The converter offers various protection features such as overvoltage, short circuit, and overload protection.
With a compact form factor of 5.00" x 3.00" x 1.40", it is suitable for chassis mounting and designed for 1U applications. The operating temperature range is -10°C to 70°C with derating. Compliance includes CE, CSA, cURus, and UL approvals, along with Class B conducted and Class A radiated emissions standards.
This converter is ideal for systems requiring reliable power conversion in commercial ITE and medical environments.
80 to 264 VAC or 120 to 370 VDC.
Open frame chassis mount.
-10°C to 70°C with derating.
92% typical.
Overvoltage (latch), short circuit (hiccup auto-recovery), overload (130-180% hiccup), thermal shutdown.
1800 VAC input/ground (Class I) or 4300 VAC input/output (Class II).
11.1 A.
