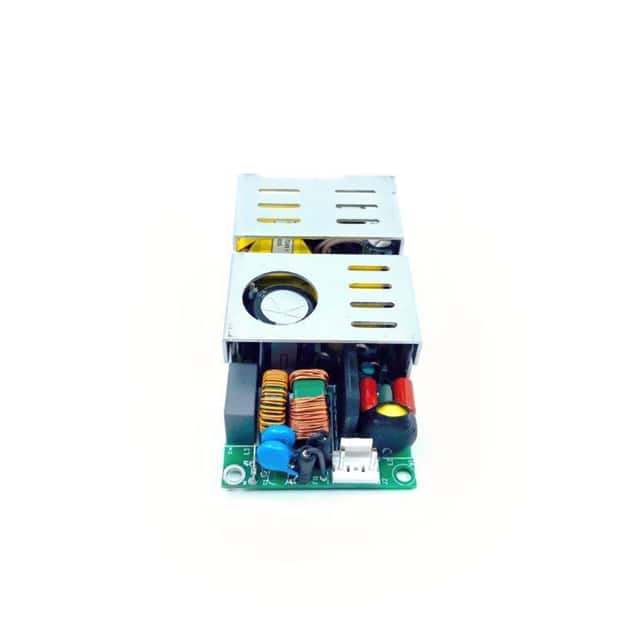

The SL Power Electronics SLB125S15K is an open frame AC/DC power supply designed for medical and industrial applications. It provides a single 15V output with a maximum power of 84W under convection cooling, and up to 125W with forced airflow.
This converter accepts a wide input voltage range of 80 to 264 VAC and features universal input capabilities. It boasts an efficiency of 89% and includes essential protections such as overvoltage, short circuit, and overload protection. The unit is designed for chassis mounting and has a compact form factor.
Key electrical specifications include a 4 kV isolation voltage, a wide operating temperature range of -20°C to 70°C with derating, and low leakage current. It meets stringent safety standards including UL/CSA/IEC60601-1 and EN/IEC62368-1.
With its robust design and comprehensive safety approvals, the SLB125S15K is suitable for various ITE (Commercial) and Medical equipment.
90 to 264 VAC (also 80 to 264 VAC per existing data).
Chassis mount, 101.6mm x 50.8mm x 32.1mm (4.00 x 2.00 x 1.26 inches).
-20°C to 70°C with derating.
15V at 5.6A.
Overvoltage, overload, short circuit, and thermal protection.
4000 VAC input/output, 1500 VAC input/ground and output/ground.
89% typical at 230VAC, 86.5% at 115VAC.
