| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

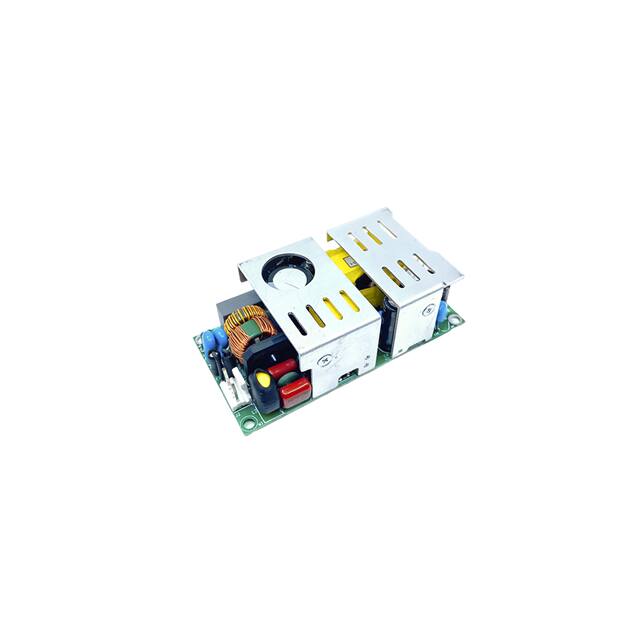

The SL Power SLB125S12C is a single-output AC-DC converter from the SLB125 series, delivering up to 85 Watts under convection cooling and 125 Watts with forced airflow. It operates with a universal input voltage range of 90 to 264 VAC, making it suitable for global applications.
This converter is designed for medical and ITE (Commercial) applications, adhering to safety standards like IEC60601-1 and IEC62368-1. It offers robust protection features including overvoltage, short circuit, and overload protection. The isolation voltage is rated at 4000 VAC between input and output (2 MOPP).
With a compact form factor measuring 4.00" x 2.00" x 1.26", it is suitable for 1U applications. The operating temperature range is -20°C to 70°C with derating. Key electrical specifications include a typical efficiency of 86.5% at 115 VAC and 16 ms hold-up time.
The SLB125S12C provides a nominal main output of 12V.
The SLB125S12C can deliver up to 85 Watts with convection cooling and 125 Watts with forced airflow.
The input voltage range is 90 to 264 VAC.
The SLB125S12C meets UL/CSA/IEC/IEC60601-1, 3rd Ed. and EN/IEC62368-1 standards.
The operating temperature range is -20°C to 70°C with derating.
It includes output overvoltage protection, short circuit protection, thermal protection, and overload protection.
