| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Lead Style | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Step Resolution | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage | |
| Voltage Supply |

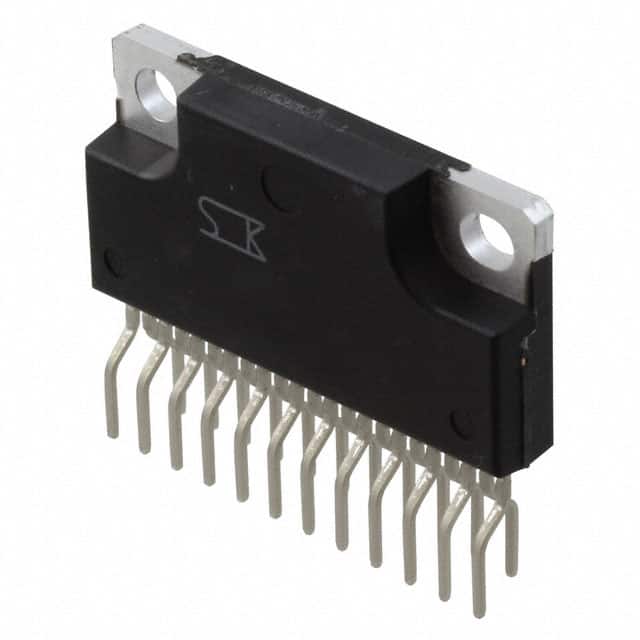

The Sanken SLA7072MPR is an integrated circuit designed for controlling unipolar stepper motors. It operates with a logic supply voltage range of 3V to 5.5V and a motor supply voltage range of 10V to 44V.
This motor driver controller delivers an output current of up to 2A and utilizes Power MOSFET technology for efficient power stage operation. It supports step resolutions of 1 and 1/2, making it suitable for a variety of motion control applications. The device features an integrated control and power stage, simplifying system design.
Designed for general-purpose use, the SLA7072MPR is housed in a 23-ESIP Formed Leads package and supports through-hole mounting. Its operating temperature range is -20°C to 150°C (TJ), ensuring reliability in various environmental conditions. The parallel interface allows for straightforward integration into control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The logic supply voltage range is 3V to 5.5V.
The motor supply voltage range is 10V to 44V.
The SLA7072MPR is offered in a 23-ESIP formed leads through-hole package, also known as 23-ZIP.
The operating junction temperature range is -20°C to 150°C.
The output current rating is 2A.
The driver uses a parallel interface.
The driver supports full-step and half-step resolutions.
