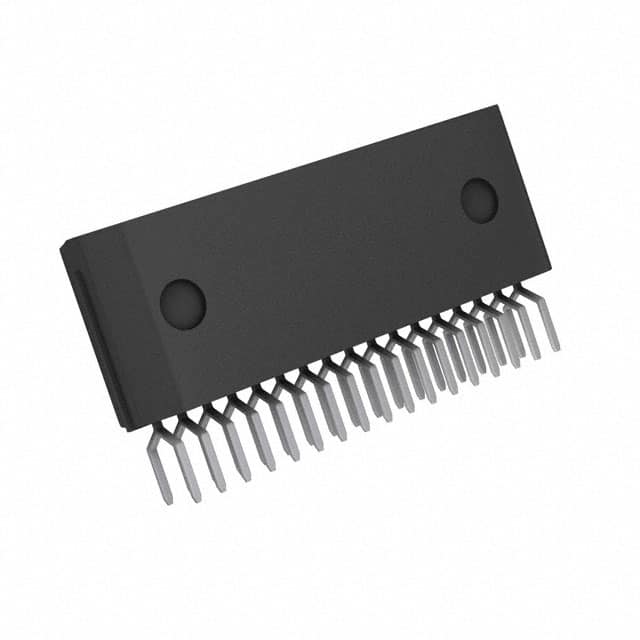

The Sanken SLA7026M is a fully integrated motor driver IC designed for unipolar stepper motor applications. It combines control logic and power stage components within a single package, simplifying circuit design.
This device features a motor supply voltage range of 10V to 44V and can deliver an output current of up to 3A. The FET drain-source voltage rating is 100V, and the control supply voltage is also rated up to 44V. It operates with a reference voltage of 2V and has a TTL input voltage compatibility of 2V.
The SLA7026M has a power dissipation of 35W at a case temperature of 25°C and a maximum channel temperature of 150°C. Storage temperature ranges from -40°C to +150°C. The device is suitable for general-purpose applications.
Packaged in an 18-ZIP configuration, the SLA7026M is designed for through-hole mounting. Its output configuration is a half-bridge (2), and it utilizes a parallel interface for control.
The motor supply voltage (VCC) for the SLA7026M ranges from 10V to 44V.
The SLA7026M can provide a maximum output current of 3A.
The SLA7026M is supplied in an 18-ZIP package.
The maximum channel temperature (Tch) for the SLA7026M is +150°C.
The storage temperature range (Tstg) for the SLA7026M is –40°C to +150°C.
The FET drain-source voltage (VDSS) rating for the SLA7026M is 100V.
The power dissipation (PD2) of the SLA7026M is 35W at a case temperature of 25°C.
