| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,745 pcs
|
8745 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

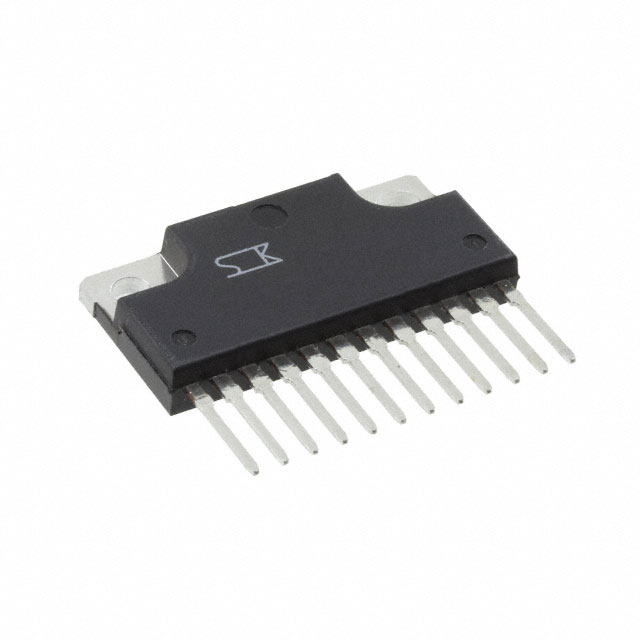

The Sanken SLA4031 is a high-performance transistor array featuring four NPN Darlington configurations within a single 12-pin SIP package. This component is designed for through-hole mounting, making it suitable for various electronic circuit designs.
Key electrical characteristics include a maximum collector-emitter voltage (VCEO) of 120V and a continuous collector current (IC) of up to 4A. The DC current gain (hFE) is rated at a minimum of 2000 at 2A collector current and 2V collector-emitter voltage. The collector-emitter saturation voltage (VCE(sat)) is a maximum of 1.5V at 2mA base current and 2A collector current.
With a maximum power dissipation of 5W at 25°C ambient temperature and a maximum operating junction temperature of 150°C, the SLA4031 is built for demanding applications. It also includes a built-in flywheel diode for flyback voltage absorption, enhancing its utility in switching power supply and motor control circuits.
The 12-SIP exposed tab package facilitates efficient heat dissipation, especially when used with appropriate heatsinks. The through-hole mounting ensures robust mechanical connections in the final assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) for the SLA4031 is 120V.
The SLA4031 can handle a maximum continuous collector current (IC) of 4A.
The minimum DC current gain (hFE) for the SLA4031 is 2000 at 2A collector current and 2V collector-emitter voltage.
The SLA4031 is supplied in a 12-SIP package with an exposed tab.
The SLA4031 is designed for through-hole mounting.
The SLA4031 has a maximum operating junction temperature of 150°C.
