| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,962 pcs
|
6962 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
3,490 pcs
|
3490 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request | |
|
723 pcs
|
723 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Arc Voltage (On State) | |
| Capacitance | |
| Device Finish | |
| Fail Short | |
| Halogen Free | |
| Impulse Breakdown Voltage (Maximum @ 1 kV/µs) | |
| Impulse Breakdown Voltage (Maximum @ 100 V/µs) | |
| Impulse Discharge Current (8 | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Tape & Reel | |
| Voltage |

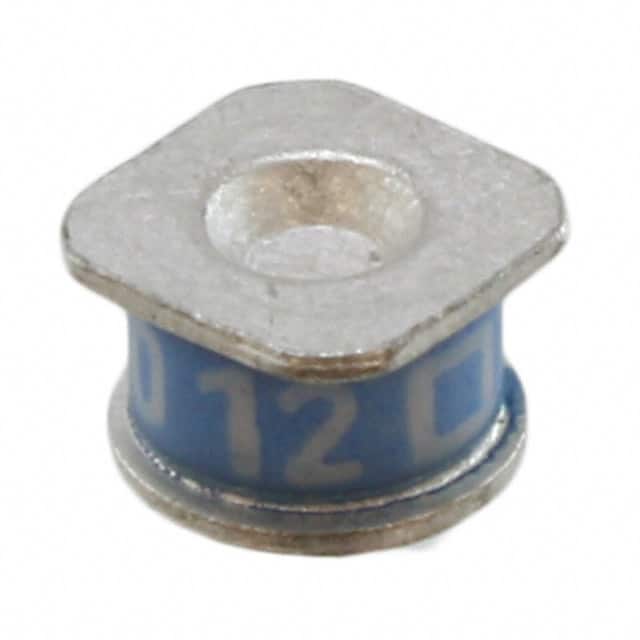

The Littelfuse SL1002A090SM is a 2-electrode gas discharge tube (GDT) designed for broadband and telecom equipment protection. It offers a DC breakdown voltage of 90V typical (72V min, 108V max) and impulse breakdown voltages of 600V at 100V/µs and 700V at 1kV/µs. The device can handle impulse discharge currents up to 5kA (8/20µs waveform), making it suitable for lightning surge protection.
Key electrical characteristics include ultra-low capacitance of 1.2pF typical, insulation resistance of 1GΩ at 50V, and an arc voltage of 15V at 1A. The GDT operates over a temperature range of -40°C to +90°C and is RoHS, lead-free, and halogen-free compliant.
The SL1002A090SM is packaged in a 2-SMD Cylinder Square End surface mount package, enabling compact PCB design. It is designed for applications such as ADSL, xDSL, satellite, and CATV equipment, providing fast transient protection without series resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.35 | $1.35 |
| 10+ | $1.04 | $1.04 |
| 100+ | $0.86 | $0.86 |
| 500+ | $0.79 | $0.79 |
| 1,000+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DC breakdown voltage is 90V typical, with a minimum of 72V and maximum of 108V at 100V/s.
It is available in a 2-SMD Cylinder Square End surface mount package.
The operating temperature range is -40°C to +90°C.
Yes, it is RoHS3 compliant and lead-free.
The impulse discharge current is 5kA (8/20µs).
