| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Failure Instantaneous Energy | |
| Body Temperature at 100% Max Current | |
| Capacitance (Maximum @ 120 VAC) | |
| Capacitance (Maximum @ 240 VAC) | |
| Coating Lead Run Down | |
| Current | |
| Diameter | |
| Dissipation Constant | |
| Lead Diameter | |
| Lead Length | |
| Lead Spacing | |
| Lead Style | |
| R @ 25°C | |
| R @ Current | |
| Resistance (Maximum @ 50% Max Current) | |
| Tape & Reel | |
| Thermal Time Constant | |
| Thickness (T) | |
| Tolerance |

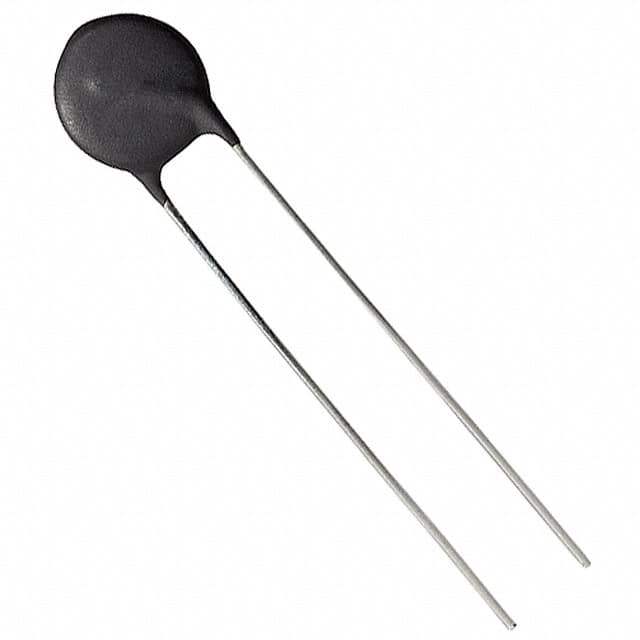

The SL10 10002 is an inrush current limiter (ICL) from Ametherm Inc. It features a resistance of 10 Ohm ±25% at 25°C, with resistance dropping to 0.34 Ohm at 100% max current and 0.60 Ohm at 50% max current. The maximum steady state current is 2 A at 65°C ambient.
Thermal characteristics include a dissipation constant of 9.4 mW/°C and a thermal time constant of 20 seconds. The body temperature at 100% max current is typically 124°C. The device has a maximum capacitance rating of 700 µF at 120 VAC and 135 µF at 240 VAC.
Mechanically, the part has a maximum diameter of 10.0 mm, a thickness of 4.5 mm, and lead spacing of 5.1 mm nominal. Lead diameter is 0.5 mm and lead length is 38 mm. The coating lead run down is 3.0 mm maximum. The part is RoHS3 compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.67 | $1.67 |
| 50+ | $1.39 | $1.39 |
| 100+ | $1.11 | $1.11 |
| 200+ | $1.04 | $1.04 |
| 600+ | $1.00 | $1.00 |
| 1,000+ | $0.93 | $0.93 |
| 2,600+ | $0.93 | $0.93 |
| 5,000+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 Ohm ±25%.
2 A at 65°C ambient.
10.0 mm maximum.
Yes, it is listed as RoHS3 compliant.
20 seconds typical.
