| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
536 pcs
|
536 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Discharge Current (9 cycle @50Hz) | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance | |
| DC Breakdown Voltage | |
| Fail Short | |
| Impulse Breakdown Voltage (Maximum @ 1 kV/µs) | |
| Impulse Breakdown Voltage (Maximum @ 100 V/µs) | |
| Impulse Discharge Current (8 | |
| Industrial Grade | |
| Insulation Resistance | |
| Max Impulse Discharge Current (10/350µs) | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Nominal AC Discharge Current | |
| Nominal Impulse Discharge Current (8/20µs) | |
| Number of Poles | |
| Surge Life (10/1000µs) | |
| Tape & Reel | |
| Voltage |
The SL0902A090SM is a gas discharge tube (GDT) from Littelfuse, part of the Broadband Optimized SL0902A series. It features a DC breakdown voltage of 90V typical (72-108V range) and is designed to protect against fast rising transients caused by lightning disturbances. The device offers a nominal impulse discharge current of 5kA (8/20µs) and a maximum impulse discharge current of 0.5kA (10/350µs).
This GDT provides low capacitance of 0.5 pF typical at 1MHz, making it suitable for broadband applications such as ADSL2+, xDSL, and CATV equipment where capacitance variation is undesirable. It also features high insulation resistance of 1 GΩ minimum at 50V.

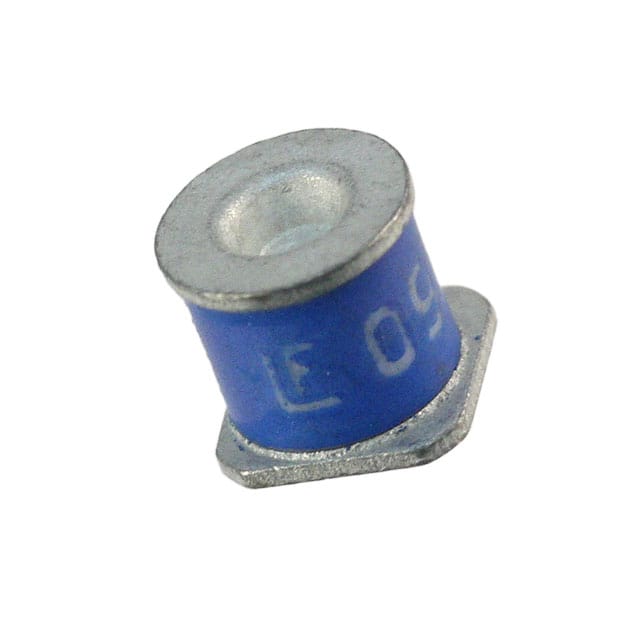

The device is housed in a surface mount 2-SMD Cylinder Square End package with 2 poles. It is RoHS3 compliant and lead-free, and does not fail short. The SL0902A090SM is UL recognized and conforms to ITU-T K12 and IEC 61000-4-5 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.28 | $2.28 |
| 10+ | $1.74 | $1.74 |
| 100+ | $1.45 | $1.45 |
| 500+ | $1.20 | $1.20 |
| 900+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
90V typical (72-108V range).
Surface mount, 2-SMD Cylinder Square End package.
Yes, it is RoHS3 compliant and lead-free.
0.5 pF typical at 1MHz.
1 GΩ minimum at 50V.
5 kA (8/20µs).
2 poles.
