| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | 222 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Diameter Accepted | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Prop 65 | |
| SVHC Present | |
| Shell Material | |
| Style | |
| Tape & Reel | |
| Termination | |
| UL Recognition |

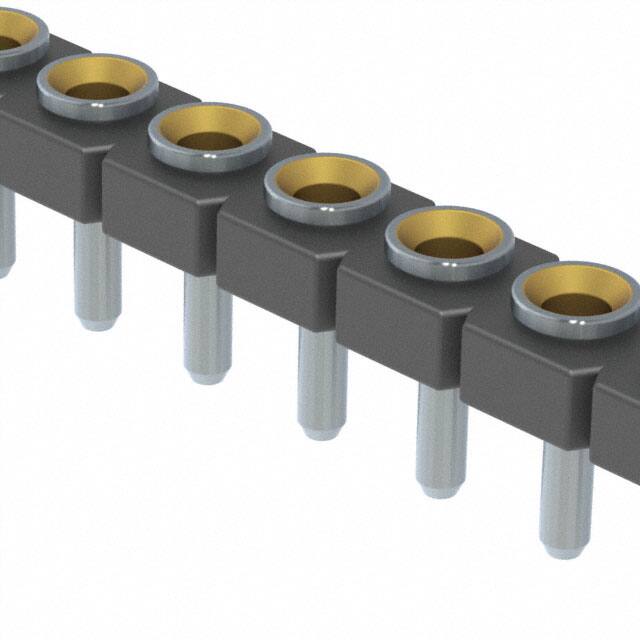

The Samtec SL-132-T-19 is a 32-position single row through hole receptacle socket strip designed for board-to-board applications. It features beryllium copper contacts with 30µin gold plating and a brass shell with tin plating. The insulator is black liquid crystal polymer (LCP) with a height of 2.10mm. The connector has a push-pull fastening mechanism and accepts lead diameters from 0.41mm to 0.51mm. The insertion depth for Style 19 is 1.65mm to 3.56mm. The pitch is 2.54mm (0.100"). Operating temperature range is -55°C to 125°C. The connector is RoHS3 compliant, REACH unaffected, halogen free, and UL recognized (E111594). It is packaged in bulk and terminated via solder. This socket strip mates with Samtec BBL, HTS, and TS series terminal strips.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.43 | $7.43 |
| 10+ | $7.33 | $7.33 |
| 100+ | $6.40 | $6.40 |
| 250+ | $6.39 | $6.39 |
| 500+ | $6.38 | $6.38 |
| 2,000+ | $4.47 | $4.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions in a single row.
2.54mm (0.100").
Through hole.
Gold, 30µin (0.76µm) over beryllium copper.
-55°C to 125°C.
Black liquid crystal polymer (LCP).
RoHS3 compliant, REACH unaffected, Halogen Free, UL recognized (E111594).
