| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,348 pcs
|
1348 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Frequency Range | |
| IIP3 | |
| Impedance | |
| Insertion Loss | |
| Isolation | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| RF Type | |
| Supplier Device Package | |
| Supplier Package | |
| Test Frequency | |
| Topology | |
| Voltage |
The Skyworks Solutions SKYA21013 is a Single Pole Double Throw (SPDT) RF Switch designed for applications operating within the 100MHz to 6GHz frequency range. This component features low insertion loss of 0.5 dB and high isolation of 28 dB, making it suitable for demanding RF signal routing.
With an IIP3 of 68 dBm and an impedance of 50 Ohms, the SKYA21013 is built for performance in wireless communication systems. It operates over a voltage range of 2.5V to 4.8V and can withstand temperatures from -40°C to 85°C.

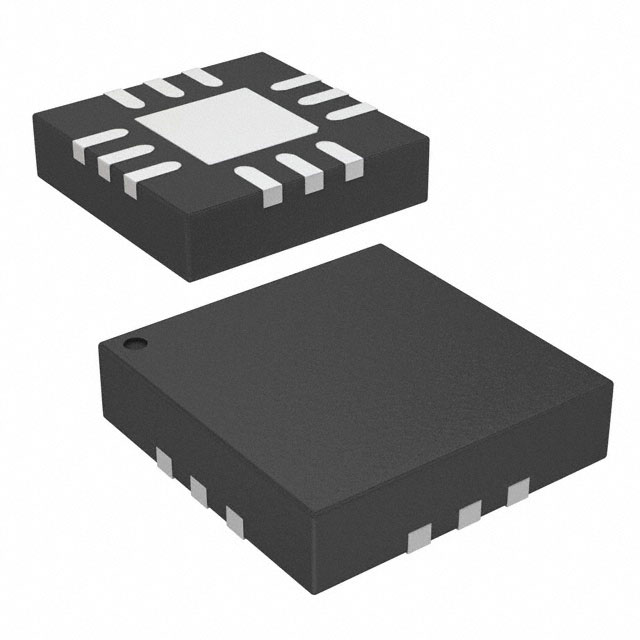

The device is supplied in a 12-QFN (2x2) package with an exposed pad, requiring surface mounting. Its RF type is compatible with 802.11b/g/n standards. The topology is reflective.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the SKYA21013 is 2.5V to 4.8V.
The operating temperature range for the SKYA21013 is -40°C to 85°C.
The SKYA21013 is supplied in a 12-QFN (2x2) package with an exposed pad.
The SKYA21013 RF Switch operates from 100MHz to 6GHz.
The typical insertion loss of the SKYA21013 is 0.5 dB.
The typical isolation rating for the SKYA21013 is 28 dB.
