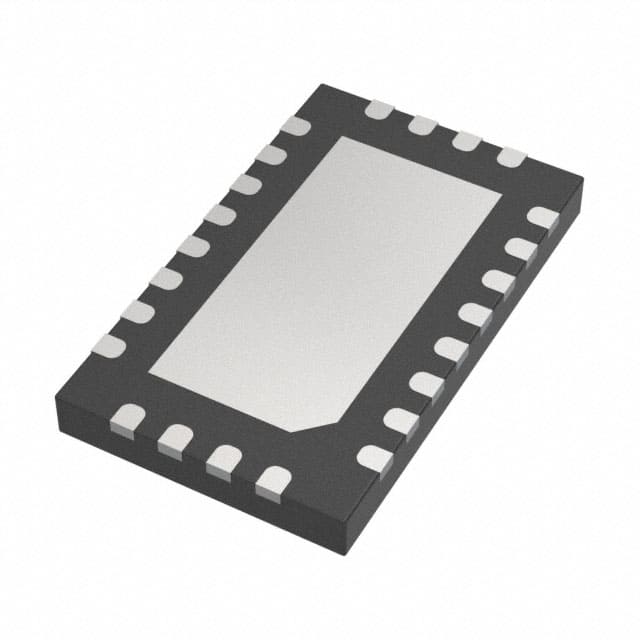

The SKY85728-11 from Skyworks Solutions is a highly integrated 5 GHz front-end module (FEM) specifically designed for high-power 802.11ac applications. This module incorporates a 5 GHz power amplifier (PA), a 5 GHz low-noise amplifier (LNA) with bypass functionality, and a 5 GHz single-pole, double-throw (SPDT) transmit/receive (T/R) switch.
Key electrical characteristics include a transmit gain of 32 dB and a receive gain exceeding 15 dB. The output power can reach +22.5 dBm at -35 dB DEVM for HT80, MCS9, and 5V operation, or +23 dBm at -30 dB DEVM for HT40, MCS7, and 5V operation. An integrated power detector is included for closed-loop power control.
This device is supplied in a compact 24-pin Quad Flat No-Lead (QFN) package measuring 3 x 5 mm, which can significantly reduce front-end board space. The LNA and PA disable functions ensure low leakage current when the device is in the off mode. Skyworks GreenTM products are compliant with all applicable legislation and are halogen-free.
Applications for the SKY85728-11 include 802.11ac networking and personal computing systems, PC cards, PCMCIA cards, mini-cards, and WLAN-enabled wireless video systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.06 | $3.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The transmit gain is 32 dB.
The receive gain is greater than 15 dB.
The output power is +22.5 dBm at -35 dB DEVM, HT80, MCS9, 5 V, and +23 dBm at -30 dB DEVM, HT40, MCS7, 5 V.
The SKY85728-11 is supplied in a 24-QFN (3x5 mm) package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 3 (168 Hours).
