SKY77529-24

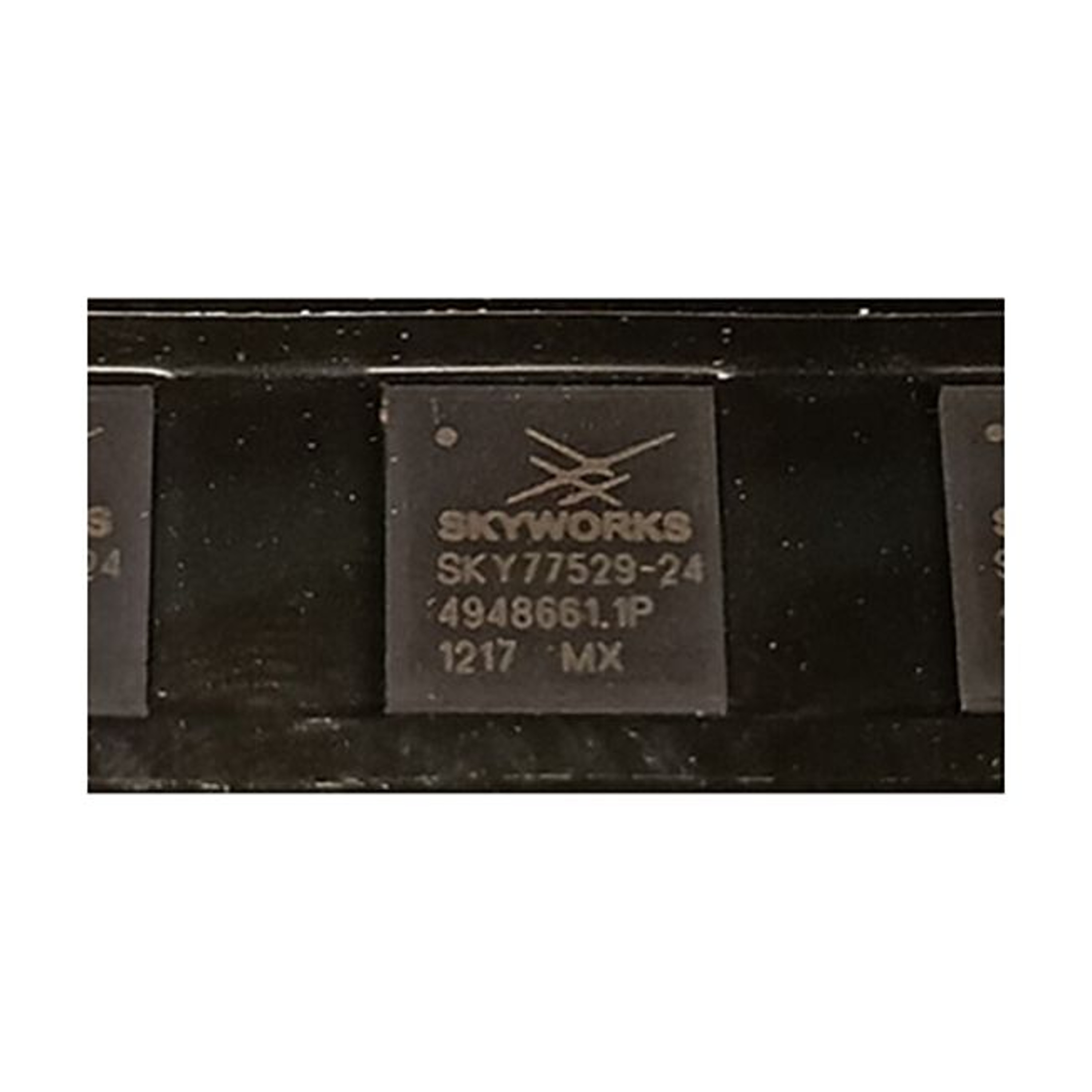

The Skyworks Solutions SKY77529-24 is an integrated circuit designed as an RF Front End Module (FEM), incorporating both Low Noise Amplifier (LNA) and Power Amplifier (PA) blocks. This component is engineered to support key mobile communication frequency bands, including GSM850/900 and DCS1800/PCS1900.

The FEM features two separate Heterojunction Bipolar Transistor (HBT) PA blocks fabricated onto an InGaP die. One block is dedicated to the GSM850/900 bands, while the other handles the DCS1800 and PCS1900 bands. The assembly integrates the InGaP PA die, a silicon Multi-function Control (MFC) die, a PHEMT switch die, and passive components, all mounted on a multi-layer laminate substrate and encapsulated with a plastic overmold.

Functionality is managed through a Serial Peripheral Interface (SPI) bus, allowing the SPI controller to accept telegrams that dictate PA and switchplexer-related functions, controlling all FEM operating modes and switch states. The MFC provides interoperation with a specified transceiver to establish a closed-loop power control mechanism. The external circuit uses a Linear Detector output to set bias points for 8PSK (EDGE) and GMSK (GSM) modes, reducing sensitivity to variations in antenna load, input drive, temperature, power supply, and process.

This design ensures the PA is configured for fixed gain in 8PSK mode and allows for optimized PA bias at different power levels to maximize efficiency. The SKY77529-24 is suitable for applications requiring robust RF performance and efficient power management in mobile devices.
