| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,196 pcs
|
3196 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Halogen Free | |
| Lead Spacing | |
| Logic Control Voltage | |
| Noise Figure | |
| Output Power | |
| Package Description | |
| Plating | |
| RF Type | |
| Sleep Mode Current | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Switch ON/OFF Time |
The Skyworks SKY66403-11 is a high-performance, fully integrated RF Front End Module (FEM) specifically engineered for ZigBee, Thread, and Bluetooth (including Low Energy) applications. This device simplifies design by providing an integrated solution with an antenna diversity switching capability for all supported modes.
Key electrical specifications include an integrated Power Amplifier (PA) capable of up to +21 dBm output power and an integrated Low Noise Amplifier (LNA) with a typical noise figure of 2 dB, also featuring a bypass path. The module operates over a wide supply voltage range of 1.8 V to 3.6 V, making it suitable for battery-powered devices. It also boasts a low sleep mode current of less than 1 μA typical and a fast switch on/off time of less than 800 ns.
The SKY66403-11 supports a frequency range of 2.4 GHz to 2.48 GHz and is designed for ease of use with digital controls compatible with 1.6 V to 3.6 V CMOS levels. It includes an integrated inter-stage matching and harmonic filter. The module is housed in a compact 22-pin, 3.5 mm x 3.0 mm Multi-Chip Module (MCM) package, plated with NiPdAu, and rated for MSL3 at 260 °C per JEDEC-J-STD-020.
This RF FEM is ideal for various IoT and connected home applications such as smart appliances, thermostats, lighting, sensors, and range extenders. Its integrated design and broad compatibility reduce component count and simplify the RF design process.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.06 | $3.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SKY66403-11 offers up to +21 dBm output power.
The integrated LNA has a typical noise figure of 2 dB.
The SKY66403-11 supports ZigBee, Thread, and Bluetooth.
The module operates over a supply voltage range of 1.8 V to 3.6 V.

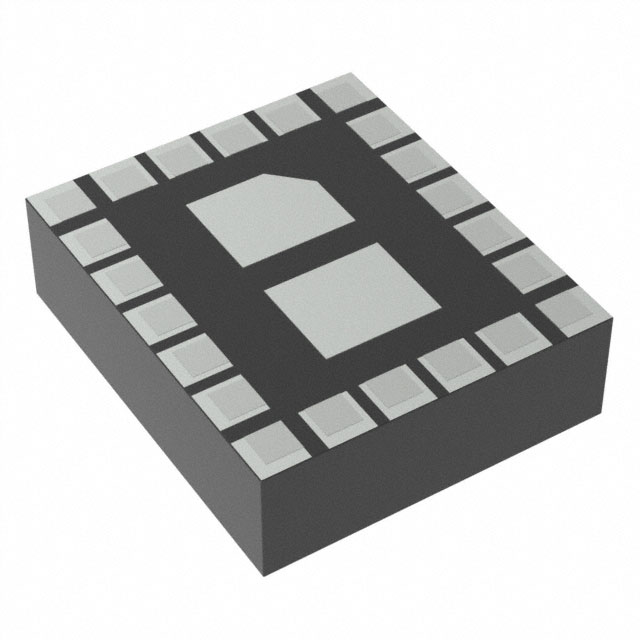

The SKY66403-11 is supplied in a 22-pin MCM (3.5x3mm) package.
Yes, Skyworks GreenTM products are compliant with all applicable legislation and are halogen-free.
