| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
857 pcs
|
857 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Lead Spacing | |
| Mounting Type | |
| Noise Figure | |
| Operating Temperature (Minimum/Maximum) | |
| P1dB | |
| RF Type | |
| Supplier Device Package | |
| Test Frequency | |
| Voltage |

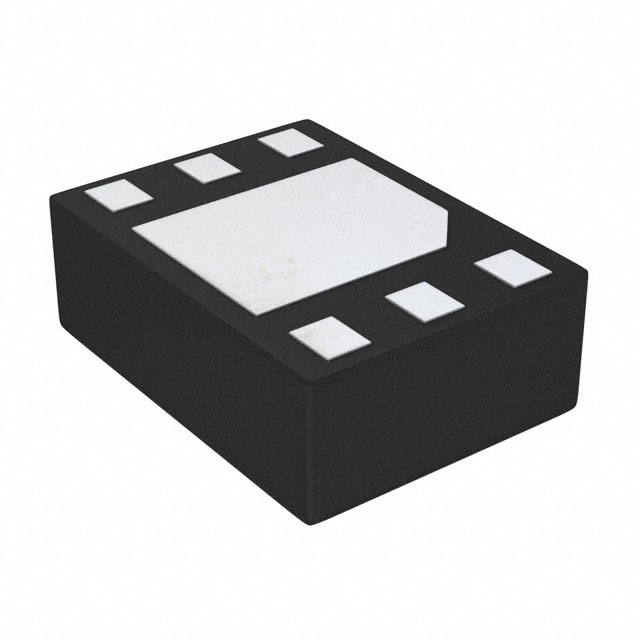

The Skyworks SKY65723-81 is an RF Amplifier IC suitable for various wireless communication systems including BDS, Cellular, GLONASS, GNSS, GPS, PCS, and WLAN. It operates efficiently within a frequency range of 1.559GHz to 1.606GHz, with a specified test frequency of 1.575GHz.
This component features a supply voltage range of 1.62V to 3.6V and consumes a low operating current of 4.2mA. Key electrical characteristics include a gain of 16.8dB and a P1dB compression point of -8dBm, with a noise figure of 1.6dB. The device is designed for surface mounting and comes in a 6-MCM (1.7x2.3) package.
Its operating temperature ranges from -40°C to +85°C, making it suitable for a variety of environmental conditions. The SKY65723-81 is RoHS3 compliant and has an MSL rating of 1, indicating unlimited usability under standard conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.70 | $1.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 1.559GHz to 1.606GHz.
The operating supply voltage is between 1.62V and 3.6V.
The gain is 16.8dB.
The operating temperature ranges from -40°C to +85°C.
