| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,427 pcs
|
2427 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Supply Voltage | |
| Features | |
| Frequency | |
| Gain | |
| Isolation | |
| Mounting Type | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Transmit Output Power |
The Skyworks Solutions SKY65338-21 is a high-efficiency Front-End Module (FEM) designed for applications such as Tetra radio, remote metering, GSM, and WLL transmitters. It operates within the 450-470 MHz frequency range.
Key features include a transmit output power greater than +25 dBm and high gain in the transmit path of 32 dB. The module also provides high transmit/receive isolation exceeding 30 dB. It incorporates internal RF matching and bias circuits, with all RF ports being internally DC blocked. The device requires a single DC supply of +3.6 V.

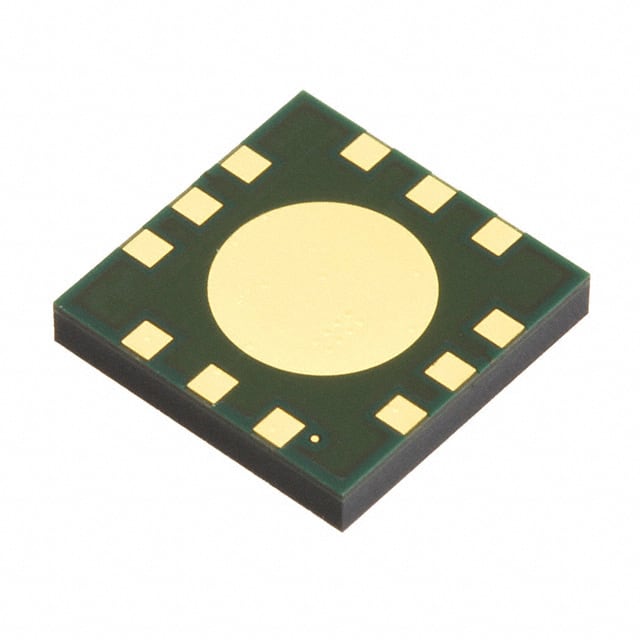

The SKY65338-21 is housed in a compact 12-pin MCM (8x8 mm) SMT package, making it suitable for space-constrained designs. The module integrates a transmit and receive path along with an antenna transmit/receive (T/R) switch. The transmit path includes a high-efficiency Power Amplifier (PA) and a harmonic filter. The receive path offers low insertion loss and is internally matched to 50 Ω.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.06 | $3.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 450 to 470 MHz.
The transmit output power is greater than +25 dBm.
The high gain in the transmit path is 32 dB.
The transmit/receive isolation is greater than 30 dB.
The device requires a single DC supply of +3.6 V.
It is supplied in a 12-pin MCM (8x8 mm) SMT package.
This component is RoHS3 Compliant.
