| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,825 pcs
|
1825 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 1013P/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Halogen Free | |
| Lead Spacing | |
| Mounting Type | |
| Noise Figure | |
| OIP3 | |
| Operating Temperature | |
| P1dB | |
| PAE | |
| RF Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

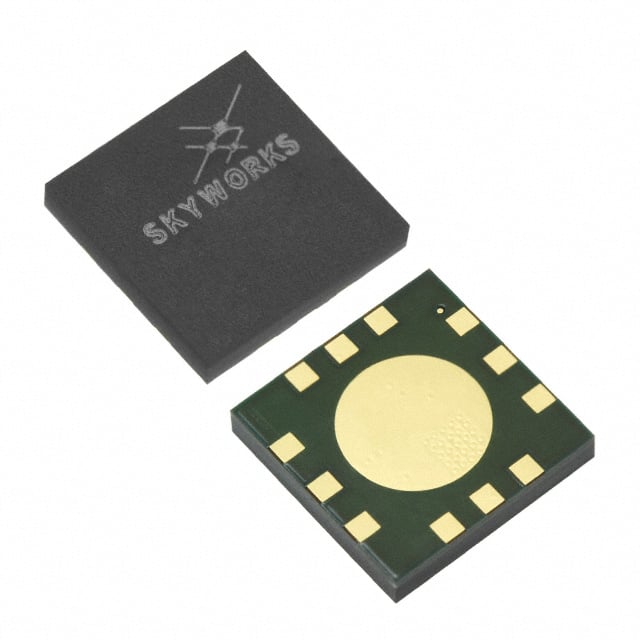

The SKY65116-21 from Skyworks Solutions is a fully matched, linear Power Amplifier (PA) module designed for high-performance applications in the 390 to 500 MHz frequency range. This device is fabricated using Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) process, enabling single supply operation at 3.6V while maintaining high efficiency and linearity.
Key electrical specifications include a wideband frequency operation from 390 to 500 MHz, a high linearity with OIP3 of +43 dBm, and a high gain of 35 dB. The P1dB is rated at +32.5 dBm, and the power added efficiency (PAE) is 40%. The module includes internal RF matching and bias circuits, with PA on/off voltage control.
Designed for surface mount applications, the SKY65116-21 comes in a low-cost, 12-pin MCM (8x8 mm) package. It operates over an industrial temperature range of -40 °C to +85 °C. This amplifier is suitable for applications such as TETRA radio, GSM450/480, NMT450, and wireless local loop systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SKY65116-21 operates from 390 MHz to 500 MHz.
The typical gain of the SKY65116-21 is 35 dB.
The P1dB output power is +32.5 dBm.
The SKY65116-21 requires a single DC supply of 3.6 V.
The operating temperature range is -40 °C to +85 °C.
The SKY65116-21 is supplied in a 12-SMD Module package, specifically a 12-MCM (8x8) module.
