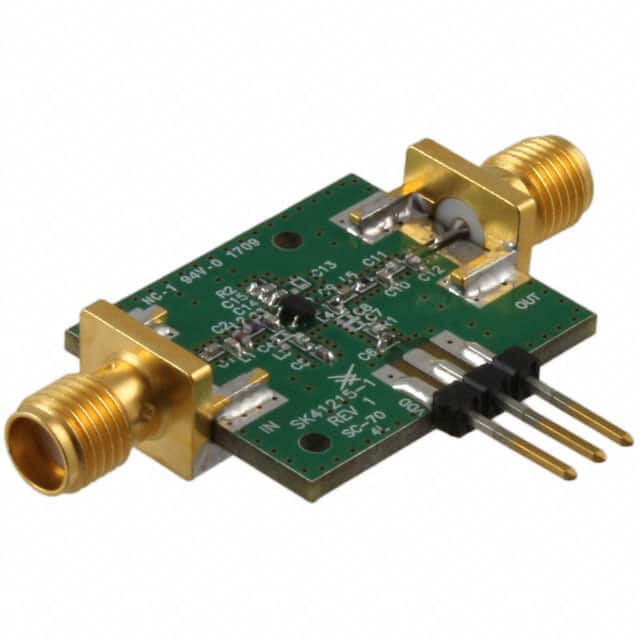

The Skyworks Solutions SKY65050-372LF-EVB is an evaluation board designed to facilitate the use of the SKY65050-372LF low-noise transistor. This transistor is fabricated using Skyworks' advanced depletion mode pHEMT process and is suitable for a wide range of applications including wireless infrastructure like WLAN, WiMAX, broadband, and cellular base stations, as well as test instrumentation and LNA for GPS receivers.
The evaluation kit provides access to the transistor's key features, such as a typical noise figure of 0.45 dB (device only) at 2.4 GHz and a gain of 15.5 dB at 2.4 GHz. It also boasts an OIP3 of +23.5 dBm and a P1dB of +10.5 dBm at 2.4 GHz. The device supports an adjustable supply current from 5 to 55 mA and operates across a frequency range of 450 MHz to 6 GHz.
The SKY65050-372LF transistor is housed in a compact SC-70 package, measuring 2.20 x 1.35 x 1.10 mm. The evaluation board is supplied with the necessary board(s) to enable testing and prototyping with this high-performance low-noise transistor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates at a supply voltage (VDD) of 3 volts.
The amplifier is housed in a compact SC-70 package measuring 2.20 x 1.35 x 1.10 mm.
The typical gain is 15.5 dB when measured at 2.4 GHz.
The supply current is adjustable from 5 mA to 55 mA.
The noise figure is 0.45 dB for the device only and 0.65 dB including matching network loss.
The board supports frequencies ranging from 450 MHz to 6 GHz.
