Mfr Part #:

SKY16601-555LF

The SKY16601-555LF is a fully integrated PIN diode low-threshold limiter module from Skyworks Solutions, optimized for 0.50 to 6.0 GHz operation with low insertion loss and low distortion.

✓ Total Stock: 6,690 pcs

SKY16601-555LF Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	5,331 pcs On Request	5331 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,357 pcs On Request	1357 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Trace Tec ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SKY16601-555LF Description

Short technical summary and product information.

The SKY16601-555LF is a fully integrated PIN diode low-threshold limiter module from Skyworks Solutions, designed for use as a passive receiver protector in wireless and RF systems up to 6 GHz. It features low insertion loss and low distortion in a single MLP package.

The module is comprised of a PIN limiter diode, an RF choke inductor, and two DC blocking capacitors at the RF ports in a 2-lead MLP package. Key electrical specifications include a maximum reverse voltage of 45V, maximum forward current of 1.5A at 25°C, and maximum power dissipation of 1W at case temperature 85°C. The device operates over a frequency range of 0.50 to 6.0 GHz and has a capacitance of 0.4pF at 6V and 1MHz, and a resistance of 2 ohms at 10mA and 500MHz.

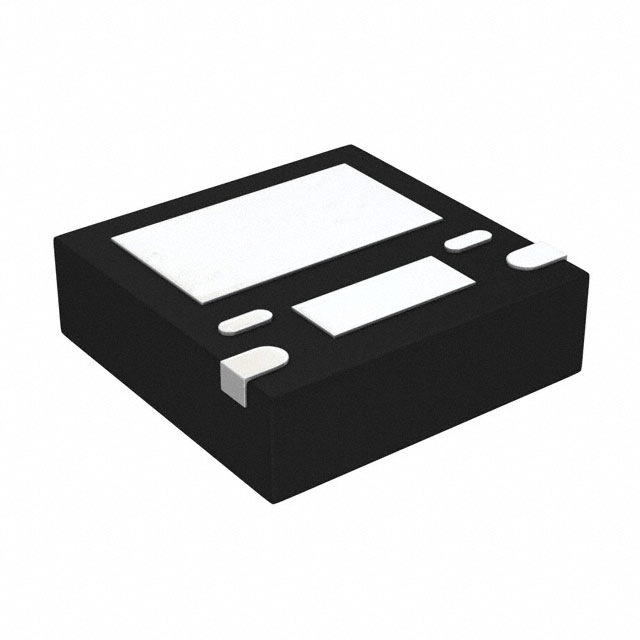

The SKY16601-555LF is housed in a 2-VSFN exposed pad surface-mount package (2-MLP 2.5x2.5mm) and is rated for operating temperatures from -40°C to 85°C. It is RoHS3 compliant, halogen-free, and Pb-free, with an MSL rating of 1 (unlimited) at 260°C per JEDEC J-STD-020.

SKY16601-555LF Quick Information

Product Type: PIN Diode Limiter Module

Canonical Name: SKY16601-555LF Integrated Single-Stage PIN Diode Limiter Module

Subcategory: RF Diodes

SKY16601-555LF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

Lead Free: Yes

SKY16601-555LF Features

Integrated PIN diode limiter module.
Operates from 0.50 to 6.0 GHz.
Low insertion loss and low distortion.
Surface mount 2-MLP package.
RoHS3 compliant and halogen-free.

SKY16601-555LF Applications

Receiver LNA protection in cellular infrastructure.
WLAN and WiMAX RF front-end protection.
Test instrument input protection.
General wireless receiver protection up to 6 GHz.

SKY16601-555LF FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum reverse voltage of the SKY16601-555LF?

The maximum reverse voltage is 45V.

What is the operating frequency range of this PIN diode limiter?

The operating frequency range is 0.50 to 6.0 GHz.

What package does the SKY16601-555LF come in?

It comes in a 2-VSFN exposed pad surface mount package, also known as 2-MLP (2.5x2.5 mm).

What is the maximum power dissipation of this device?

The maximum power dissipation is 1W at a case temperature of 85°C.

Is the SKY16601-555LF RoHS compliant?

Yes, it is RoHS3 compliant and also halogen-free and Pb-free.

Category	Diodes - RF
Manufacturer Name	Skyworks Solutions
Approval Agency	0.50 to 6.0 GHz
Capacitance	0.4pF
Capacitance @ Vr, F	0.4pF @ 6V, 1MHz
Current	1.5A
Diode Type	PIN - Single
Frequency Range	0.50 to 6.0 GHz
Halogen Free	Halogen-Free
Lead Style	No Lead
Mounting Type	Surface Mount
Operating Temperature	-40°C to 85°C
Power Dissipation (Max)	1W
Resistance @ If, F	2Ohm
SVHC Present	Not Present
Storage Temperature	-65°C ~ 150°C
Supplier Device Package	2-MLP (2.5x2.5)
Tape & Reel	Yes
Voltage	45V
