| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,997 pcs
|
1997 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Frequency Range | |
| Impedance | |
| Insertion Loss | |
| P1dB | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Test Frequency | |
| Topology | |
| Voltage |

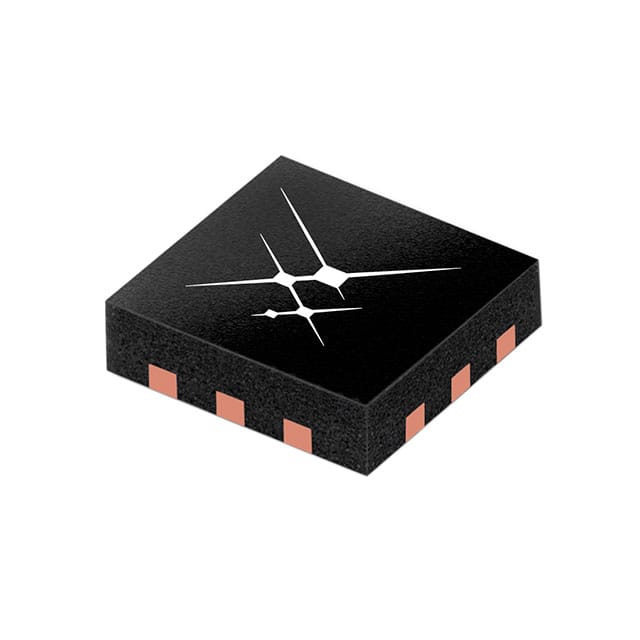

The Skyworks Solutions SKY13547-490LF is a Single Pole Double Throw (SPDT) RF switch designed for applications operating within a frequency range of 5 MHz to 1.8 GHz. This component features a low insertion loss of 0.3 dB at 1 GHz and a P1dB of 38 dBm. It is specified for an impedance of 75 Ohms and operates with a voltage range of 2.5V to 4.8V.
The device is housed in a 12-UFQFN Exposed Pad package, with the supplier package identified as 12-QFN (2x2). It is designed for surface mount applications.
This RF switch is suitable for various RF signal routing applications where precise switching and signal integrity are critical. Its specifications make it a viable option for systems requiring reliable performance across a broad frequency spectrum.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SKY13547-490LF operates from 5 MHz to 1.8 GHz.
The insertion loss is 0.3 dB.
The impedance is 75 Ohms.
The operating voltage range is from 2.5 V to 4.8 V.
It is packaged in a 12-UFQFN exposed pad package.
Yes, it is RoHS3 compliant.
