| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
213 pcs
|
213 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Frequency Range | |
| Halogen Free | |
| IIP3 | |
| Impedance | |
| Insertion Loss | |
| Isolation | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| RF Type | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Test Frequency | |
| Voltage | |
| insertion_loss (Unspecified condition) | |
| isolation (Unspecified condition) |

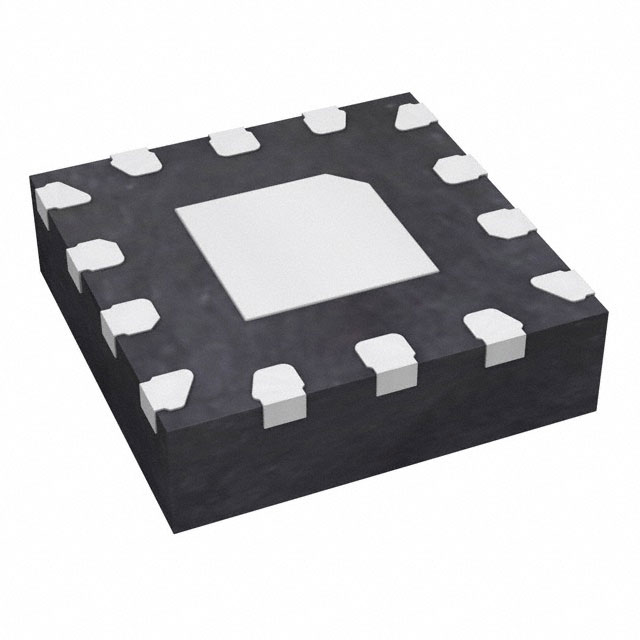

The SKY13523-639LF from Skyworks Solutions is a high-isolation Single Pole Triple Throw (SP3T) RF switch designed for cellular applications such as CDMA, WCDMA, TD-SCDMA, and LTE filter switching. This component offers a broadband frequency range from 0.7 GHz to 3.0 GHz, ensuring versatility in various communication systems.
Key performance characteristics include high isolation of greater than 45 dB at 2.0 GHz and a typical insertion loss of 0.5 dB at 2.0 GHz. The switch operates with a voltage range of 2.5V to 3.3V and maintains a 50 Ohm impedance. It is designed for surface mount installation and comes in a compact 14-pin QFN package measuring 1.6 x 1.6 mm.
The operating temperature range for the SKY13523-639LF is -30°C to 90°C. It is manufactured using Skyworks GreenTM technology, compliant with all applicable legislation and halogen-free. The part is supplied in a 14-XFQFN exposed pad package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 0.7 GHz to 3.0 GHz.
The typical insertion loss is 0.5 dB at 2.0 GHz.
The isolation is greater than 45 dB at 2.0 GHz.
The operating voltage is between 2.5V and 3.3V.
It is an SP3T circuit.
It is supplied in a 14-QFN (1.6x1.6) package.
The operating temperature range is -30°C to 90°C.
