The SKY13489-001 from Skyworks Solutions is a high-performance SPDT RF switch suitable for LTE, TDD/FDD, and GSM transmit applications. It offers a broad operating frequency range from 0.7 GHz to 2.7 GHz, making it versatile for various wireless communication systems.
Key electrical characteristics include low insertion loss of 0.3 dB at 2.7 GHz and high isolation of 22 dB up to 2.7 GHz. The switch is controlled by a single GPIO pin and requires no external DC blocking capacitors, provided no DC voltage is applied to the RF path. It operates with a control voltage range of 1.35 to 3.00 V and a supply voltage range of 2.45 to 4.80 V.
This device is provided in a compact 6-bump WLCSP (Wafer Level Chip Scale Package) measuring 1.135 x 0.735 x 0.400 mm. The small footprint and WLCSP construction are ideal for board-level assembly in space-constrained designs. The package meets MSL1 requirements and is rated for 260 °C per JEDEC J-STD-020.
The SKY13489-001 is part of Skyworks GreenTM products, compliant with applicable legislation and halogen-free. It is designed for applications such as LTE TDD/FDD transmit, GSM transmit, and embedded modules.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SKY13489-001 operates across a broadband frequency range of 0.7 to 2.7 GHz.
The insertion loss is 0.3 dB at 2.7 GHz.
The isolation is 22 dB up to 2.7 GHz.
The device supports a supply voltage range of 2.45 to 4.80 V.

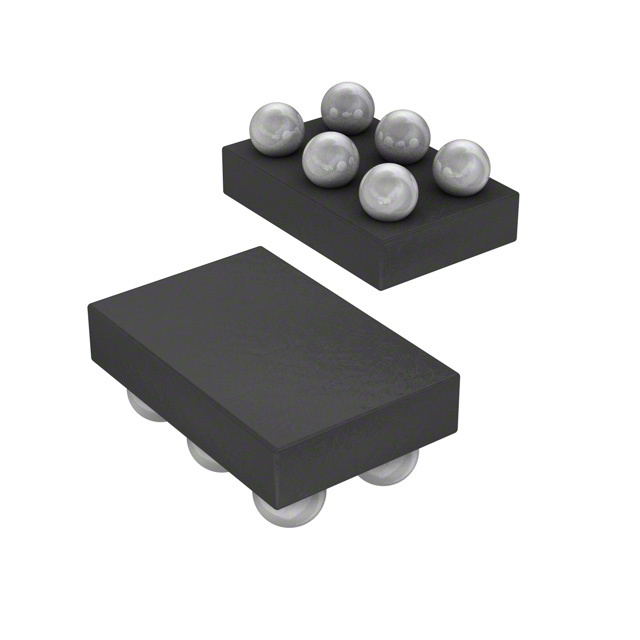

The SKY13489-001 is provided in a compact 6-bump WLCSP package.
The SKY13489-001 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
