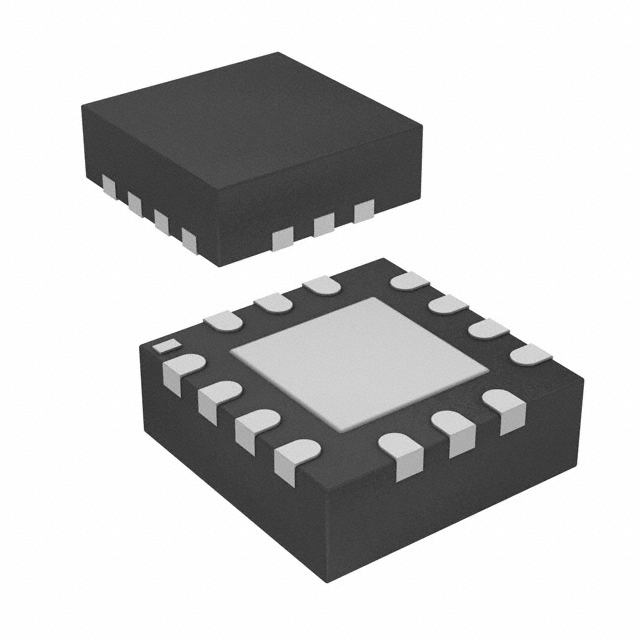

The Skyworks Solutions SKY13416-485LF is a Single Pole Six Throw (SP6T) RF antenna switch designed for broadband applications from 0.1 to 6.0 GHz. It offers a low insertion loss of 0.6 dB typical at 5.0 GHz and 0.45 dB typical at 1.5 GHz, along with high isolation figures of greater than 26 dB at 2.7 GHz and greater than 28 dB at 1.5 GHz.
This switch is suitable for various applications including LTE transmit/receive systems, cable modems, and set-top boxes. It boasts ultra-high-linearity performance with CTB and CSO below -100 dBc. The integrated logic simplifies design, and no external DC blocking capacitors are required. The device operates with a DC supply voltage ranging from 2.5 V to 4.8 V.
The SKY13416-485LF is part of a scalable family of SP4T through SP8T switches from Skyworks Solutions. It is housed in a compact 14-QFN (2.0 x 2.0 mm) exposed pad package, suitable for surface mount applications. The operating temperature range is -40°C to 85°C.
Key electrical specifications include an impedance of 50 Ohm and an IIP3 of 70 dBm, with a P1dB of 37 dBm. The part is classified as a general-purpose RF type.
The frequency range is 0.1 to 6.0 GHz.
The insertion loss is 0.6 dB typical at 5.0 GHz and 0.45 dB typical at 1.5 GHz.
Isolation is greater than 26 dB at 2.7 GHz and greater than 28 dB at 1.5 GHz.
The DC supply voltage is between 2.5 V and 4.8 V.
It features a Single Pole Six Throw (SP6T) circuit.
The operating temperature range is -40°C to 85°C.
It is supplied in a 14-QFN (2x2mm) package suitable for surface mounting.
