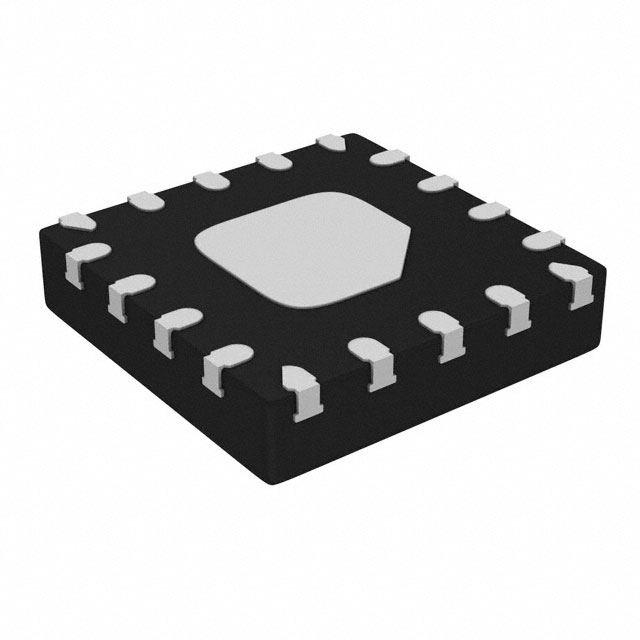

SKY13399-468LF The Skyworks Solutions SKY13399-468LF is a DPx3T RF Switch designed for broadband applications from 10 MHz to 2.7 GHz. It features a low insertion loss and operates within a wide voltage range.
Mfr Part #:

SKY13399-468LF

Available from 2 distributors
Mfr Name: Skyworks Solutions
Skyworks Solutions
The Skyworks Solutions SKY13399-468LF is a DPx3T RF Switch designed for broadband applications from 10 MHz to 2.7 GHz. It features a low insertion loss and operates within a wide voltage range.
✓ Total Stock: 23,859 pcs
$ Price Range: $0.75

SKY13399-468LF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
23,663 pcs
On Request
23663 pcs On Request 1 On Request On Request 1840+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
196 pcs
On Request
196 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SKY13399-468LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Frequency Range
Impedance
Insertion Loss
Isolation
Lead Spacing
Mounting Type
Operating Temperature
Operating Voltage
P1dB
RF Type
Storage Temperature
Supplier Device Package
Supply Voltage
Test Frequency
Voltage
View Similar Products (0)

SKY13399-468LF Description

Short technical summary and product information.

The SKY13399-468LF from Skyworks Solutions is a double-pole, triple-throw (DPx3T) RF switch featuring on-die crossovers for simplified design. It operates across a broad frequency range of 10 MHz to 2.7 GHz, making it suitable for various wireless communication applications including GSM, DCS, PCS, CDMA, WCDMA, and TD-SCDMA.



This switch offers low insertion loss, with typical values of 0.25 dB at 25 MHz, 0.35 dB at 1 GHz, and 0.4 dB at 2.2 GHz. It supports a wide VDD supply range from 2.5 V to 4.8 V and has an isolation of 60 dB. The device is manufactured using a silicon on insulator (SOI) process and comes in a compact 18-pin QFN (2x2 mm) package, designed for surface mount installation.



Key electrical characteristics include a P1dB of 30 dBm and an impedance of 50 Ohms. The operating temperature range is -40°C to 85°C. The SKY13399-468LF is designed for ease of use with crossovers implemented on the die.

SKY13399-468LF Quick Information

Product Type: RF Switch
Canonical Name: SKY13399-468LF DPx3T Switch
Subcategory: DPx3T Switch

SKY13399-468LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

SKY13399-468LF Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKY13399-468LF Features

  • Broadband frequency range: 10 to 2700 MHz
  • Low insertion loss: 0.4 dB typical
  • Wide VDD supply range: 2.5 to 4.8 V
  • Compact 18-QFN (2x2 mm) package
  • Suitable for CDMA, GSM, WCDMA applications

SKY13399-468LF Applications

  • Differential filter switching applications
  • GSM, DCS, PCS band switching
  • CDMA, WCDMA, TD-SCDMA systems
  • Broadband RF signal routing

SKY13399-468LF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the SKY13399-468LF?

The SKY13399-468LF operates within a VDD supply range of 2.5 V to 4.8 V.

What is the frequency range of the SKY13399-468LF RF switch?

The SKY13399-468LF covers a broadband frequency range from 10 MHz to 2.7 GHz.

What is the typical insertion loss of the SKY13399-468LF at 1 GHz?

The typical insertion loss of the SKY13399-468LF at 1 GHz is 0.35 dB.

What package type is the SKY13399-468LF supplied in?

The SKY13399-468LF is supplied in an 18-pin QFN (2x2 mm) package.

What is the operating temperature range for the SKY13399-468LF?

The operating temperature range for the SKY13399-468LF is -40°C to 85°C.
