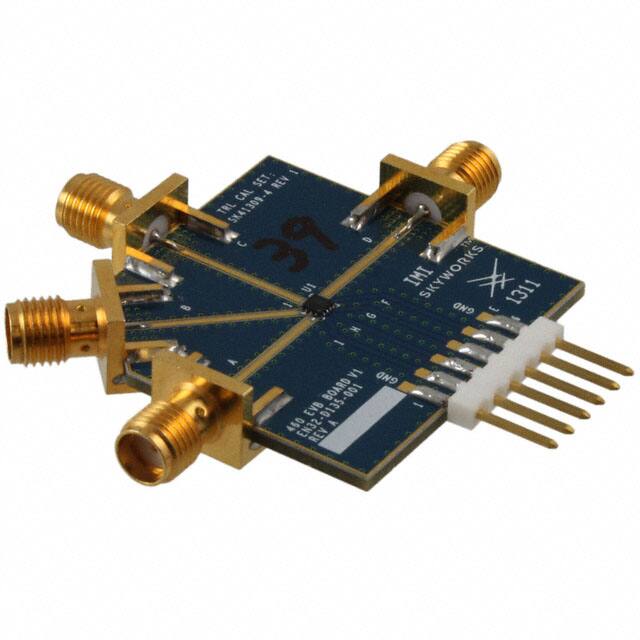

This evaluation board, the SKY13385-460LF-EVB, is designed for the Skyworks Solutions SKY13385-460LF SP3T switch. The SKY13385-460LF is a CMOS silicon-on-insulation (SOI) switch ideal for WLAN (802.11 b/g) and Bluetooth applications.
The switch offers a broadband frequency range from 0.1 to 3.5 GHz, with a typical insertion loss of 0.5 dB at 2.45 GHz and high isolation of 32 dB up to 2.45 GHz. It requires no external DC blocking capacitors and operates with positive low voltage control (1.650 to 3.465 V) and a supply voltage (VDD) of 2.5 to 5.5 V.
The SKY13385-460LF switch is housed in a compact 12-pin QFN package measuring 2 x 2 mm with a 0.5 mm pitch. This evaluation board facilitates the testing and implementation of this switch in various wireless communication systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The broadband frequency range is 0.1 to 3.5 GHz.
The typical insertion loss is 0.5 dB at 2.45 GHz.
The isolation is 32 dB up to 2.45 GHz.
Positive low voltage control is required from 1.650 to 3.465 V, and the supply voltage (VDD) is 2.5 to 5.5 V.
The operating temperature range is -40 to +85 °C.
The switch is provided in a compact 12-pin QFN package, measuring 2 x 2 mm with a 0.5 mm pitch.
The RoHS status is RoHS3 Compliant.
