| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28,794 pcs
|
28794 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Control Voltage | |
| Features | |
| Frequency Range | |
| IIP3 | |
| Impedance | |
| Input Power | |
| Insertion Loss | |
| Insertion Loss (Typical @ 2.5 GHz) | |
| Isolation | |
| Mounting Type | |
| Operating Temperature | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Tape & Reel | |
| Test Frequency | |
| Topology | |
| Voltage | |
| isolation (Typical @ 2.5 GHz) |
The Skyworks Solutions SKY13385-460LF is a Silicon-on-Insulation (SOI) CMOS SP3T (Single-Pole, Triple-Throw) RF switch. It operates across a broadband frequency range of 0.1 to 3.5 GHz, making it suitable for applications such as 802.11 b/g WLANs and Bluetooth®.
Key electrical characteristics include a low insertion loss of 0.5 dB at 2.45 GHz and high isolation of 32 dB up to 2.45 GHz. The device requires positive low voltage control and operates with a supply voltage (VDD) from 2.5 to 5.5 V. It does not require external DC blocking capacitors.

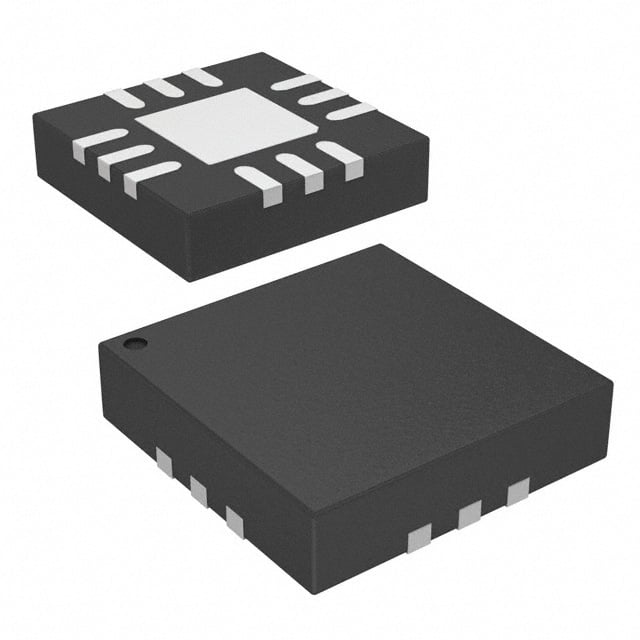

This RF switch is provided in a compact 12-pin QFN (Quad Flat No-Lead) package measuring 2 x 2 mm with a 0.5 mm pitch. It is designed for surface mount applications and operates within an ambient temperature range of -40°C to 85°C. The package is rated MSL1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SKY13385-460LF operates from 0.1 to 3.5 GHz.
The typical insertion loss at 2.45 GHz is 0.5 dB.
The maximum isolation up to 2.45 GHz is 32 dB.
It comes in a 12-UFQFN exposed pad package.
The control voltage range is 1.65 to 3.465 V.
The supply voltage range is 2.5 to 5.5 V.
The operating temperature range is -40°C to 85°C.
