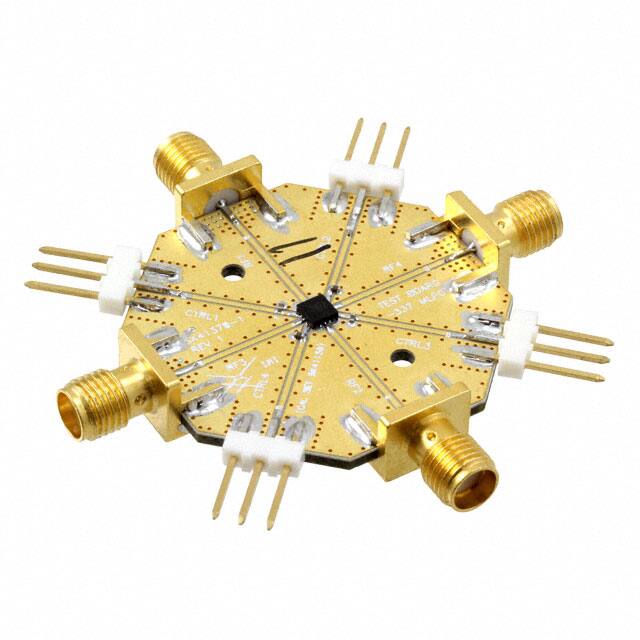

The Skyworks Solutions SKY13352-337LF-EVB is an evaluation board for the SKY13352-337LF Double-Pole, Double-Throw (DPDT) switch. This development tool is designed to facilitate the testing and implementation of the SKY13352-337LF in applications requiring diversity WLAN functionality.
The SKY13352-337LF switch itself offers broadband operation from 4.5 to 6.0 GHz, making it suitable for 802.11 a/n diversity WLAN systems. Key performance characteristics include a typical insertion loss of 1.3 dB at 5.8 GHz and a typical isolation of 25 dB at 5.8 GHz. The device supports positive voltage operation from +1.8 V to +5 V, with integrated DC blocking capacitors on RF paths.
The evaluation board allows engineers to explore the switch's capabilities, including its linearity and low insertion loss. The SKY13352-337LF is provided in a compact 3 x 3 mm, 12-pin QFN package, and this evaluation board provides a platform for its integration and testing. The board type is listed as a Switch, DPDT, and it is supplied with the board itself.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SKY13352 SPDT RF switch operates from 4.5 to 6 GHz.
Typical insertion loss is 1.3 dB at 5.8 GHz.
Typical isolation is 25 dB at 5.8 GHz.
Typical IP1dB is +31 dBm at +3 V supply.
The switch operates from +1.8 to +5 V.
The switch is housed in a 12-pin QFN package measuring 3 x 3 mm.
The control voltage maximum is +6 V.
